DMS Seals New hydraulic rod seals supply for pressure work and sliding high speed occasions

Company Advantages
1. The offered DMS Seals hydraulic rod seals is crafted using premium materials which are in compliance with the current market standards.
2. DMS Seals is fabricated using quality raw materials and advanced production technology.
3. DMS Seals hydraulic rod seals provide the perfect blend of style, selection, and affordability.
4. DMS Seals is made using advanced production technology in tune with the industrial principles.
5. Strict quality control system is adopted to provide strong guarantee for product quality.
6. Strict quality inspection procedures throughout the production process must be of superior quality and performance.
7. This product has been tested for good performance and durability.
8. Every product is strictly tested before it leaves the factory.
9. The product effectively provides people with better water quality through the reduction of some harmful containments such as bacteria and heavy metal.
10. The product is specially adapted design and suits the specific requirements of the operators and the various environmental conditions available.
11. The function of the product is mainly to reduce shock and impact to the foot when people are walking or running.
12. The product helps reduce the pollution of heavy metals, corrosive materials, and other nasty chemicals. These substances will ruin the environment.
13. This product provides a great way to create a beautiful summer memory and enhance the relationship between friends and families.

Item	Specifications

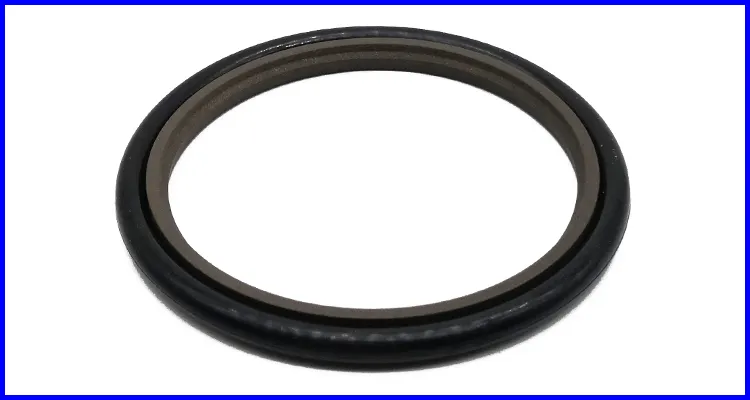

Product Name	Mechanical Heavy Duty Opposite Step Seal GSJ
Products Category	Hydraulic seals, Oil seals, O-Rings
Material	PTFE, PU, NBR, FKM, PA, POM, Silicone, EPDM, FFKM, UPE, PEEK etc.
Propeties	High temperature, low temperature, high pressure, low pressure,friction resistance
Sizes	Standard and customize
Medium	Hydraulic oil,  anti-fire fluid, water, gas etc
Application	excavators, loaders, graders, dump trucks, forklifts, bulldozers, scrapers, mining trucks, cranes, aerial vehicles, garbage transfer vehicle, sliding cars, agricultural machinery, logging equipment, etc.

Precautions:

1. In general, this seal is ideal as a buffer seal. Not recommended for use as a single seal. If the piston rod retracts faster than it extends, it can be used alone, but must be combined with a double-lip wiper.

2. If the other parameters of the O-ring are qualified, the diameter of the ring is 1~2% larger than the value listed in the sample, which will not affect the use.

3. When installing, the sealing ring can be bent into a heart shape and put into the groove, but there must be no creases.

4. Pay attention to the direction when installing this seal, the gap corresponds to the direction of oil pressure

5. The hardness value of the piston rod surface is recommended to be greater than HRC40

NO.	SIZE	NO.	SIZE
1	GSJ20*27.3*3.2	48	GSJ135*150.1*6.3
2	GSJ20*30.7*4.2	49	GSJ135*155.5*8.1
3	GSJ22*29.3*3.2	50	GSJ140*155.1*6.3
4	GSJ22*32.7*4.2	51	GSJ140*160.5*8.1
5	GSJ25*32.3*3.2	52	GSJ145*160.1*6.3
6	GSJ25*35.7*4.2	53	GSJ150*165.1*6.3
7	GSJ28*38.7*4.2	54	GSJ150*170.5*8.1
8	GSJ30*40.7*4.2	55	GSJ160*175.1*6.3
9	GSJ32*42.7*4.2	56	GSJ160*180.5*8.1
10	GSJ35*45.7*4.2	57	GSJ165*180.1*6.3
11	GSJ36*46.7*4.2	58	GSJ170*185.1*6.3
12	GSJ40*50.7*4.2	59	GSJ170*190.5*8.1
13	GSJ40*55.1*6.3	60	GSJ180*195.1*6.3
14	GSJ45*55.7*4.2	61	GSJ180*200.5*8.1
15	GSJ45*60.1*6.3	62	GSJ190*205.1*6.3
16	GSJ50*60.7*4.2	63	GSJ190*210.5*8.1
17	GSJ50*65.1*6.3	64	GSJ200*220.5*8.1
18	GSJ55*65.7*4.2	65	GSJ210*230.5*8.1
19	GSJ55*70.1*6.3	66	GSJ220*240.5*8.1
20	GSJ60*70.7*4.2	67	GSJ230*250.5*8.1
21	GSJ60*75.1*6.3	68	GSJ240*260.5*8.1
22	GSJ63*73.7*4.2	69	GSJ250*270.5*8.1
23	GSJ63*78.1*6.3	70	GSJ260*284*8.1
24	GSJ65*80.1*6.3	71	GSJ270*294*8.1
25	GSJ70*80.7*4.2	72	GSJ280*304*8.1
26	GSJ70*85.1*6.3	73	GSJ290*314*8.1
27	GSJ75*90.1*6.3	74	GSJ300*324*8.1
28	GSJ80*95.1*6.3	75	GSJ310*334*8.1
29	GSJ85*100.1*6.3	76	GSJ320*344*8.1
30	GSJ90*105.1*6.3	77	GSJ330*354*8.1
31	GSJ90*110.5*8.1	78	GSJ340*364*8.1
32	GSJ95*110.1*6.3	79	GSJ350*374*8.1
33	GSJ95*115.5*8.1	80	GSJ360*384*8.1
34	GSJ100*115.1*6.3	81	GSJ370*394*8.1
35	GSJ100*120.5*8.1	82	GSJ380*404*8.1
36	GSJ105*120.1*6.3	83	GSJ390*414*8.1
37	GSJ105*125.5*8.1	84	GSJ400*424*8.1
38	GSJ110*125.1*6.3	85	GSJ410*434*8.1
39	GSJ110*130.5*8.1	86	GSJ420*444*8.1
40	GSJ115*130.1*6.3	87	GSJ430*454*8.1
41	GSJ115*135.5*8.1	88	GSJ440*464*8.1
42	GSJ120*135.1*6.3	89	GSJ450*474*8.1
43	GSJ120*140.5*8.1	90	GSJ460*484*8.1
44	GSJ125*140.1*6.3	91	GSJ470*494*8.1
45	GSJ125*145.5*8.1	92	GSJ480*504*8.1
46	GSJ130*145.1*6.3	93	GSJ490*514*8.1
47	GSJ130*150.5*8.1	94	GSJ500*524*8.1

Company Features
1. As a specialist manufacturer of , Dms Seals Technology Co.,limited has owned a presence in the market owing to competence and experience. Dms Seals Technology Co.,limited, engaged in the R&D and manufacture of hydraulic rod seals for many years, is competitive and has won recognization in this field. Relying on years of manufacturing expertise, Dms Seals Technology Co.,limited has been considered as one of the most competitive manufacturers of . With years of experience in the marketplace of hydraulic seal kits suppliers , Dms Seals Technology Co.,limited is proud of being a leading manufacturer in China. Dms Seals Technology Co.,limited is the highest quality global supplier. We have experience and product knowledge for any project.
2. DMS Seals focuses on the research and development of the hydraulic o rings suppliers . DMS Seals has extremely advanced technology. Currently, Dms Seals Technology Co.,limited enjoys a market share in the both domestic and international market. DMS Seals constantly upgrades hydraulic seals ppt production technology.
3. Dms Seals Technology Co.,limited has gradually cultivated and formed the entrepreneurial spirit of . Call now! For the corporate purpose of hydraulic seal design , DMS Seals has been attracting more and more customers. Call now! Taking hydraulic cylinder seal kits into seriously is one of the important part in business. Call now!

DMS Seals New hydraulic rod seals supply for pressure work and sliding high speed occasions

hydraulic rod seals

Type:
