DMS Seals metric thrust bearings cost as the guide sleeve

Company Advantages
1. The design of DMS Seals metric thrust bearings adds an overall aesthetic. DMS Seals' production equipment and test equipment are on the leading level in the industry.
2. Dms Seals Technology Co.,limited's metric thrust bearings has been sold to oversea market for several years and has been well received by customers. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
3. Our integrated QC system ensures that every product is complete as promise. DMS Seal manufacturer provides good quality and competitive price hydraulic seals

1. Installation Recommendation

2. Application and properties

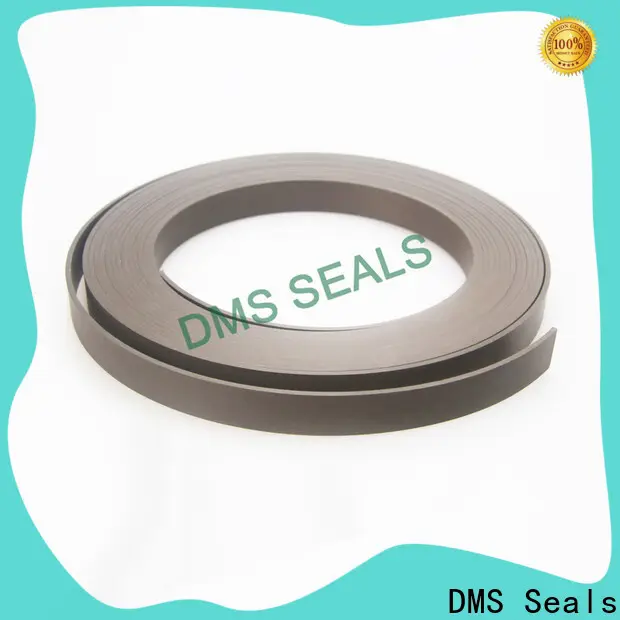

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.



3. Standard materials

Filled PTFE



4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8



5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. The quality and quantity of metric thrust bearings produced by Dms Seals Technology Co.,limited are among the leading level in China.
2. Dms Seals Technology Co.,limited has world's leading enterprise product development.
3. Sustainability is a promise to our customers and to the environment. It’s our global heritage, and the one we take very seriously. While creating products that meet customers' demand, we never stop striving to achieve the lowest possible ecological footprint. Check it!
