1. materials provides the basis for a long service life of hydraulic seals companies . We have developed solutions of the sealing of special working condition
2. While providing users with cost-effective products, Dms Seals Technology Co.,limited is more focused on providing users with wholehearted services
3. Our hydraulic seals companies has higher performance than other similar products. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience
4. The product is tested to be in conformity with the international quality standards. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
5. hydraulic seals companies has basically comes up to the standards in terms of . DMS Seals implements and optimizes its quality control systems
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |

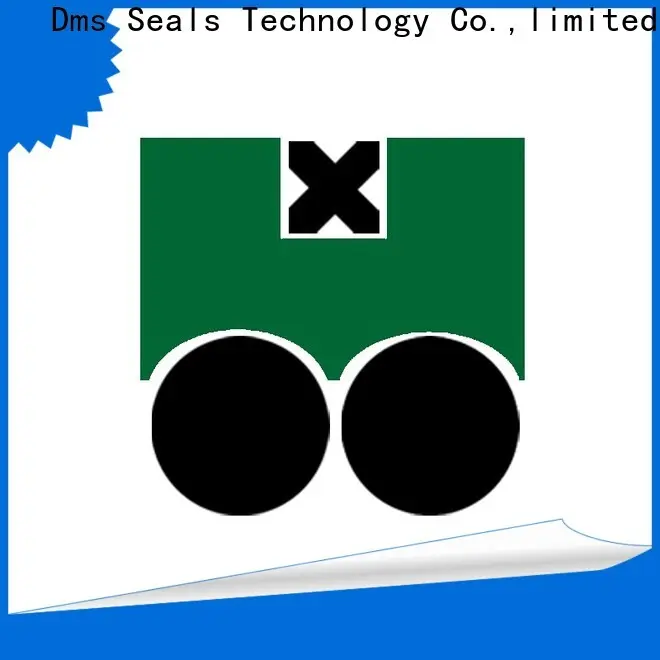

Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
