Product Details
Dms Seals pays great attention to product quality and strives for perfection in every detail of products. This enables us to create fine products.Dms Seals insists on the use of high-quality materials and advanced technology to manufacture
O-ring Seal. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.
Product Comparison
Dms Seals's Oil Seal Manufacturer is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.Compared with other products in the same category, Dms Seals's Oil Seal Manufacturer has the following advantages.
Company Advantages1. DMS Seals is prepared using premium quality raw material and modish technology.
2. The quality and safety of all the materials used for DMS Seals are extremely important.
3. DMS Seals is manufactured using the latest production technology as per the international trends.
4. The product has the desired stability. It is not prone to external factors such as vibrations and shocks or internal factors like an electric current, electric arc, electromagnetic field, and static electricity.
5. The product features an easy operation. It has a simple operation instruction which can support its powerful processing flow to finish its expected tasks.
6. The product features flexible configurations. It is easy to move and its reasonable size does not occupy too much working space.
7. People don't worry that it can cause electromagnetic radiation that is harmful to their health. The use of this product will not cause any negative impact.
8. Since the bright color palette we choose does not discolor after washing, this product is a beautiful and elegant form of room update.
9. For an eco-conscious lifestyle that’s affordable, fun, and a great alternative to traditional home-ownership, this product is a great choice.
10. This product can be a very cool tool to reach out to targeted audience groups. Using colors, fonts, and designs, brands can help establish an identity, personality and reach out easily to its audience.
1. Installation Recommendation

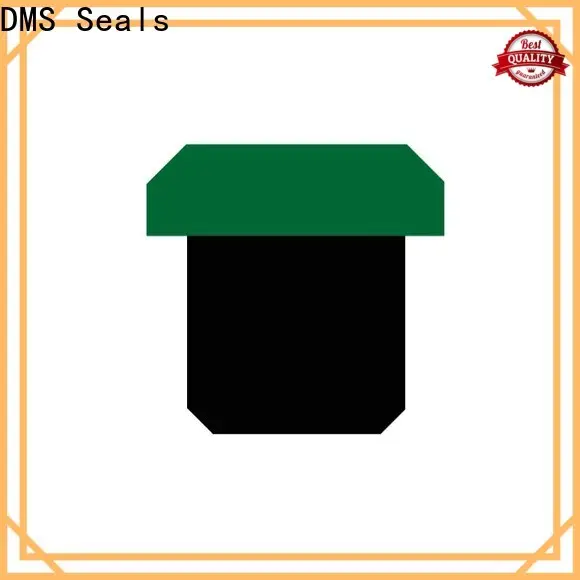

![DMS Seal Manufacturer-Professional Hydraulic Piston Seals | Ptfe Hydraulic Piston Seals]()
2. Application and properties
Extreme wear resistance, easy installation on single-part piston without assembly aids due to the split design of the sealing ring. Assembly on one-part piston is possible. Insensitive to extreme pressure peaks. Extreme high extreme pressure resistance. High pressure an large gaps due to the special compound properties of the seal ring. Dimensions according to ISO 7425-1. Short axial assembly length. Installation in closed and undercut housings. Additional sizes of machined products available on short notice.
3. Standard materials
Sealing ring: filled modified thermoplast
O-ring: NBR
4. Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed |
25 - 480mm | 0 - 80MPa | -30℃ +110℃ | ≤1 m/s |
5. Installation Dimensions
D1 | d1 | L | Order No. |
25 32 40 | 16 21 26.3 | 4.2 4.2 5.8 | OK25*16*4.2 OK32*21*4.2 OK40*26.3*5.8 |
40 50 50 | 29 34.5 36.3 | 4.2 6.3 5.8 | OK40*29*4.2 OK50*34.5*6.3 OK50*36.3*5.8 |
50 50 55 | 37 39 44 | 8 4.2 4.2 | OK50*37*8 OK50*39*4.2 OK55*44*4.2 |
55 60 60 | 44 41.7 49 | 4.2 7 4.2 | OK55*44*4.2 OK60*41.7*7 OK60*49*4.2 |
63 63 63 | 44.7 47.5 52 | 7 6.3 4.2 | OK63*44.7*7 OK63*47.5*6.3 OK63*52*4.2 |
70 70 70 | 51.7 54.5 54.5 | 7 6.3 6.3 | OK70*51.7*7 OK70*54.5*6.3 OK70*54.5*6.3 |
70 75 75 | 59 54 59.5 | 4.2 8 6.3 | OK70*59*4.2 OK75*54*8 OK75*59.5*6.3 |
80 80 85 | 59 64.5 64 | 8 6.3 8 | OK80*59*8 OK80*64.5*6.3 OK85*64*8 |
90 90 95 | 69 74.5 74 | 8 6.3 8 | OK90*69*8 OK90*74.5*6.3 OK95*74*8 |
100 100 105 | 79 84.5 84 | 8 6.3 8 | OK100*79*8 OK100*84.5*6.3 OK105*84*8 |
110 110 115 | 89 94.5 94 | 8 6.3 8 | OK110*89*8 OK110*94.5*6.3 OK115*94*8 |
115 120 125 | 100 99 104 | 8 8 8 | OK115*100*8 OK120*99*8 OK125*104*8 |
125 130 130 | 109.5 109 114.5 | 6.3 8 6.3 | OK125*109.5*6.3 OK130*109*8 OK130*114.5*6.3 |
130 135 135 | 115 114 119.5 | 8 8 6.3 | OK130*115*8 OK135*114*8 OK135*119.5*6.3 |
140 140 145 | 119 125 124 | 8 8 8 | OK140*119*8 OK140*125*8 OK145*124*8 |
150 150 152.4 | 129 135 131.5 | 8 8 8 | OK150*129*8 OK150*135*8 OK152.4*131.5*8 |
160 160 165 | 139 148 144 | 8 8 8 | OK160*139*8 OK160*148*8 OK165*144*8 |
170 175 180 | 149 154 159 | 8 8 8 | OK170*149*8 OK175*154*8 OK180*159*8 |
190 200 210 | 169 179 189 | 8 8 8 | OK190*169*8 OK200*179*8 OK210*189*8 |
220 220 230 | 199 205 209 | 8 8 8 | OK220*199*8 OK220*205*8 OK230*209*8 |
240 250 260 | 225 229 239 | 8 8 8 | OK240*225*8 OK250*229*8 OK260*239*8 |
270 280 290 | 249 255.5 271 | 8 8 9.5 | OK270*249*8 OK280*255.5*8 OK290*271*9.5 |
300 320 330 | 272 292 302 | 9.5 9.5 9.5 | OK300*272*9.5 OK320*292*9.5 OK330*302*9.5 |
350 370 420 | 322 342 392 | 9.5 9.5 9.5 | OK350*322*9.5 OK370*342*9.5 OK420*392*9.5 |
450 480 | 422 452 | 9.5 9.5 | OK450*422*9.5 OK480*452*9.5 |
Company Features1. Dms Seals Technology Co.,limited is an internationally renowned manufacturer located in China. We offer manufacturing with years of experience. Dms Seals Technology Co.,limited is a manufacturer specialized in designing and manufacturing . We share the best knowledge base and provide customers with quality service. Enjoying good fame in the domestic market, Dms Seals Technology Co.,limited is known as an experienced hydraulic seal design manufacturer in China.
2. We have facilities that work smoothly. Running under the supervision of highly professional staff and stringent computer monitoring, they provide the highest level of product consistency. Our factory has imported a series of testing facilities. This allows us to observe the performance of packaging and product in real-time, constantly improving the safety and quality of products. Our team of professionals has extensive experience and knowledge. They place great emphasis on providing quality workmanship and quick turn around times for our customers.
3. Dms Seals Technology Co.,limited sticks to the concept that no development, no progress. Ask! Dms Seals Technology Co.,limited always hold the business concept of . Ask! DMS Seals upholds the concept of . Ask!
DMS Seals hydraulic seal design manufacturer for light and medium hydraulic systems
hydraulic seal design
Type:
![DMS Seals hydraulic seal design manufacturer for light and medium hydraulic systems 7]()
![DMS Seals hydraulic seal design manufacturer for light and medium hydraulic systems 8]()
