DMS Seals high end buffer seal hydraulic for pressure work and sliding high speed occasions

Company Advantages
1. The whole production process of DMS Seals buffer seal hydraulic relies on our advanced production technology.
2. While manufacturing DMS Seals buffer seal hydraulic , we insists on using first-class raw materials.
3. The materials of DMS Seals are sourced from reputed and trusted vendors of the industry.
4. DMS Seals is available in an attractive design and appealing finish.
5. The development of DMS Seals buffer seal hydraulic is considered from the perspective of green design.
6. The product operates satisfactorily in its electromagnetic environment without affecting other devices. Its properly-designed enclosure greatly helps reduce electromagnetic interference.
7. This product is rigid and light weighted. It’s specially designed to withstand external gravity and is therefore safe in stacking the items that need to be displayed.
8. The product stands out for its reliability. It has an advanced electrical system that can effectively detect the problems of short circuit and electric leakage.
9. The product stands out for its high safety during the operation. Because it has automatic break protection from power leakage and short circuit.
10. The product is corrosion resistant. It has been treated in the chemical liquid or other chemical processing methods to enhance its anti-corrosion ability.
11. The high grade quality of buffer seal hydraulic helps it gain international competitiveness.
12. We can guarantee the top quality of buffer seal hydraulic .
13. Each of our employees is very clear that the user's requirements for buffer seal hydraulic 's quality and reliability are getting higher and higher.
14. After investigating the consumer groups and consumer demand, Dms Seals Technology Co.,limited targets consumption at medium and high levels.
15. It is of great importance for DMS Seals to provide exquisite customer service.

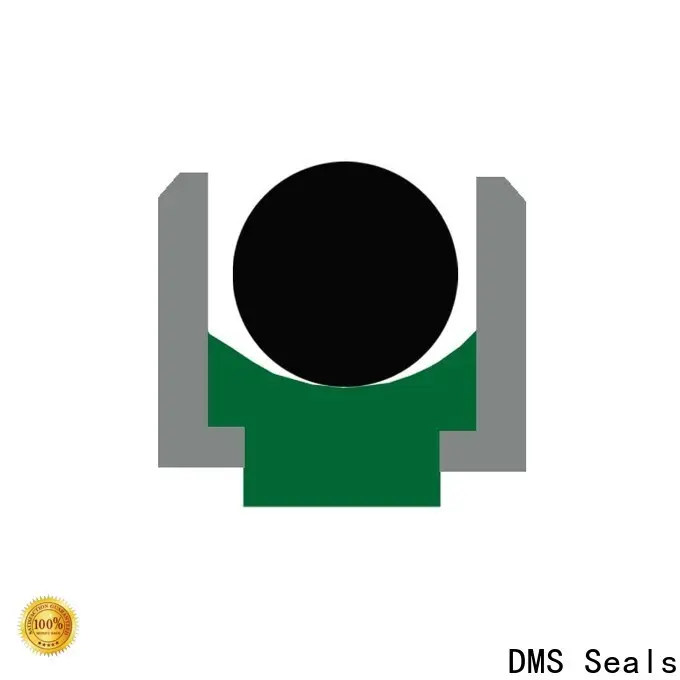

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. It is widely popular that DMS Seals brand now leads the buffer seal hydraulic industry. Dms Seals Technology Co.,limited has been focusing on the production of high-quality molded seals since inception. DMS Seals is a widely famous hydraulic seal kits suppliers supplier in this competitive society. DMS Seals has a large number of specialists and has rapidly become a leading hydraulic rod seals online manufacturer.
2. Dms Seals Technology Co.,limited is equipped with strong research strength, having an R&D team dedicated to developing all types of new viton rubber seal . The standard nature of these processes permits us to fabricate . Our piston seal material production equipment possesses many innovative features created and designed by us. piston lip seal is assembled by our highly skilled professionals. Our technology is always one step ahead than other companies for rubber piston seal .
3. We strive for operational excellence by working smarter and more sustainably to consume fewer resources, generate less waste and ensure simpler and safer processes. Dms Seals Technology Co.,limited pays a consistent focus on quality and service. Inquire online! The current business goal of our company is to improve the brand influence. By projecting a positive image, being active in the community, and engaging with customers, the company can bolster a company's image and make more people know its brand. Inquire online!
