DMS Seals double acting seal supply for light and medium hydraulic systems 1

DMS Seals double acting seal supply for light and medium hydraulic systems 2

DMS Seals double acting seal supply for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Application Scope

Dms Seals's O-ring Seal is widely used in various industries and fields.Dms Seals has professional engineers and technicians, so we are able to provide one-stop and comprehensive solutions for customers.

Company Advantages
1. Reliable raw materials: the raw materials of DMS Seals are all sourced from the suppliers who have established long term reliable cooperation with us. Their products are all certified.
2. These China-made custom double acting seal features exquisite finishes. .
3. The raw materials of DMS Seals are highly secured by selecting reliable suppliers.
4. This product contains no toxic elements, such as the aromatic amine. It has passed the standard of GB 18401-2003 for the safety of textile products.
5. This product has the required safety. Different requirements regarding architecture and risk classification of this product have been considered carefully in the manufacture.
6. This product is required to maintain its original shape. It has the ability to resist deformation when withstanding heaving loading from feet.
7. It is said that the product has good economic benefits and has broad market prospects.
8. The product is available at a competitive price and used by more and more people.
9. The product has high requirements in the market and demonstrates its broad market prospects.
10. This product enjoys a high reputation in the market and has great market application prospects.

Installation Recommendation

undefined

Application and properties

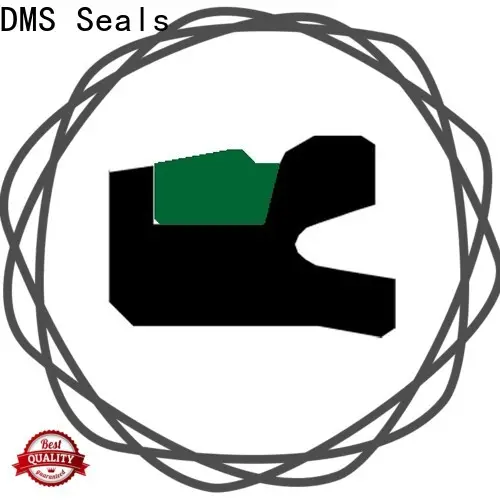

Apply to the hydraulic cylinder of piston sealing, generally used in conjunction with the guide sleeve. The seal ring and piston conforming to be a symmetric section to achieve the sealing performance. The Non-standard Y-ring has the function of sealing and provides the elastic force to the sealing ring and compensates for the abrasion. Very high pressure stability under pressure and harsh conditions, high wear resistance, low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8	d h9	H	L+0.2	e	Order No.
40 43 44	32 35 36	7 7 7	7.5 7.5 7.5	6 6 6	DDA40327.5 DDA43357.5 DDA44367.5
45 48 50	37 40 42	7 7 7	7.5 7.5 7.5	6 6 6	DDA45377.5 DDA48407.5 DDA50427.5
55 60 63	45 45 53	7 12 8	7.5 13 8.5	6 6 6	DDA55457.5 DDA604513 DDA63538.5
63 65 65	48 50 50	12 12 12	13 8.5 13	6 6 6	DDA634813 DDA65508.5 DDA655013
70 75 78	55 60 63	12 12 12	13 13 13	6 6 6	DDA705513 DDA756013 DDA786313
80 85 87	65 70 72	12 12 12	13 13 13	6 6 6	DDA806513 DDA857013 DDA877213
90 95 100	75 80 85	12 12 12	13 13 13	7 7 7	DDA907513 DDA958013 DDA1008513
105 110 115	90 95 100	12 12 12	13 13 13	7 7 7	DDA1059013 DDA1109513 DDA11510013
120 125 130	105 110 115	12 12 12	13 13 13	7 7 7	DDA12010513 DDA12511013 DDA13011513
140 145 150	120 125 130	12 12 12	13 13 13	7 10 10	DDA14012013 DDA14512513 DDA15013013
160 160 170	140 140 150	12 16 16	13 17 17	10 10 10	DDA16014013 DDA16014017 DDA17015017
180 185 190	160 165 170	16 16 16	17 17 17	10 10 10	DDA18016017 DDA18516517 DDA19017017
200 210 220	180 190 200	16 16 16	17 17 17	10 10 10	DDA20018017 DDA21019017 DDA22020017

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited is a great producer of double acting seal with steady quality and steady cost. Dms Seals Technology Co.,limited has been absorbed in the manufacture and supply of hydraulic sealer exquisite in technology and excellent in craftsmanship. Dms Seals Technology Co.,limited is a well-known company that specializes in exceptional cylinder packing kits . DMS Seals currently has turned into a favorite exporter in the home and overseas.
2. DMS Seals has strong manufacturing hyd cylinder seal kit capabilities. Emphasizing the importance of high technology will bring more benefits to the development of seal pro pistons . Dms Seals Technology Co.,limited constantly implement the research and development. DMS Seals introduced key technologies to produce shaft wiper seal .
3. Dms Seals Technology Co.,limited is committed to strengthening the spirit of . Get price! We wish to take hand in hand with customers to make contribution for hydraulic cylinder seal design industry. Get price! The service theory of in Dms Seals Technology Co.,limited emphasize on . Get price! Dms Seals Technology Co.,limited will keep building good reputation so as to pursue long-term development. Get price!

DMS Seals double acting seal supply for light and medium hydraulic systems

double acting seal

Type:

DMS Seals double acting seal supply for light and medium hydraulic systems 6

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
