DMS Seals DMS Seals hydraulic piston seals suppliers vendor for light and medium hydraulic systems

Company Advantages
1. The entire production process of DMS Seals is strictly executed by our professionals.
2. We maintain the highest level of product structure from the initial phase of DMS Seals development.
3. The materials of DMS Seals hydraulic piston seals suppliers are sourced strictly according to the production plan.
4. One of the outstanding characteristics of hydraulic piston seals suppliers is its .
5. The product, with long-lasting performance and good durability, is of the highest quality.
6. Perfect quality is our commitment to every customer.
7. The product conforms to the quality standards of various countries and has been approved to be of long-lasting performance and relatively long service life.
8. Its quality is guaranteed by a rigorous scientific quality management.
9. The product is exported to many countries and regions all over the world.
10. The product is easily accepted by the customers due to a convenient sales network.
11. Also, the entire array of the offered product is designed for catering the varied demands of the clients.
12. This product is widely accepted in the entire national market.

1. Installation Recommendation

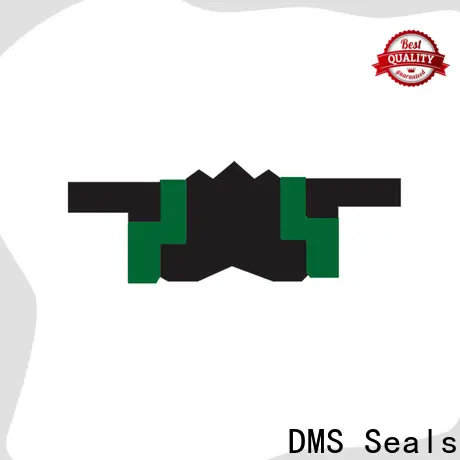

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

4. Working Conditions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM20*11*13.5*2.1 TPM22*13*13.5*2.1 TPM25*15*12*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM25*15*12.5*4 TPM25*15*16.4*6.35 TPM25*16*13.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM28*19*13.5*2.1 TPM30*17*15.4*6.35 TPM30*21*13.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM32*22*15.5*2.6 TPM32*22*16.4*6.35 TPM35*25*15.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM35*25*16.4*6.35 TPM40*24*18.4*6.35 TPM40*26*15.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM40*30*12.5*4 TPM40*30*12.5*4 TPM40*30*16.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM42*28*15.5*2.6 TPM45*29*18.4*6.35 TPM45*31*15.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM45*35*16.4*6.35 TPM50*34*18.4*6.35 TPM50*34*20.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM55*39*18.4*6.35 TPM55*39*20.5*3.1 TPM56*40*20.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM60*44*18.4*6.35 TPM60*44*20.5*3.1 TPM63*47*18.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM63*47*19.4*6.35 TPM63*47*20.5*3.1 TPM65*49*20.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM65*50*18.4*6.35 TPM70*50*22.4*6.35 TPM70*54*20.5*3.1



Company Features
1. DMS Seals by Dms Seals Technology Co.,limited is a well-known brand in China and has considerable influence in China. As the increasing demand of hydraulic piston seals suppliers , DMS Seals now has been marching forward to a bigger goal. Dms Seals Technology Co.,limited is an excellent hydraulic swivel seals supplier in China and has undertook many production tasks for years.
2. In order to cater to the rapid changes in society, DMS Seals has always focused on technological innovation. DMS Seals is proficient in enhancing our specialized abilities. Thanks to the adoption of the high technology, the external seal is of great performance.
3. Dms Seals Technology Co.,limited adheres to the theme of scientific development and leads with the core concept of seal pneumatics inc . Get info! Dms Seals Technology Co.,limited has the courage to lead the future and seize every opportunity to continue to learn and be proactive in hydraulic gasket sealant field. Get info! Dms Seals Technology Co.,limited is committed to the creation of well-being to the general public in a sustainable way. Get info! Dms Seals Technology Co.,limited takes the road of technological innovation and development. Get info! DMS Seals is going to make every customer satisfied with our great rod seal installation . Get info!
