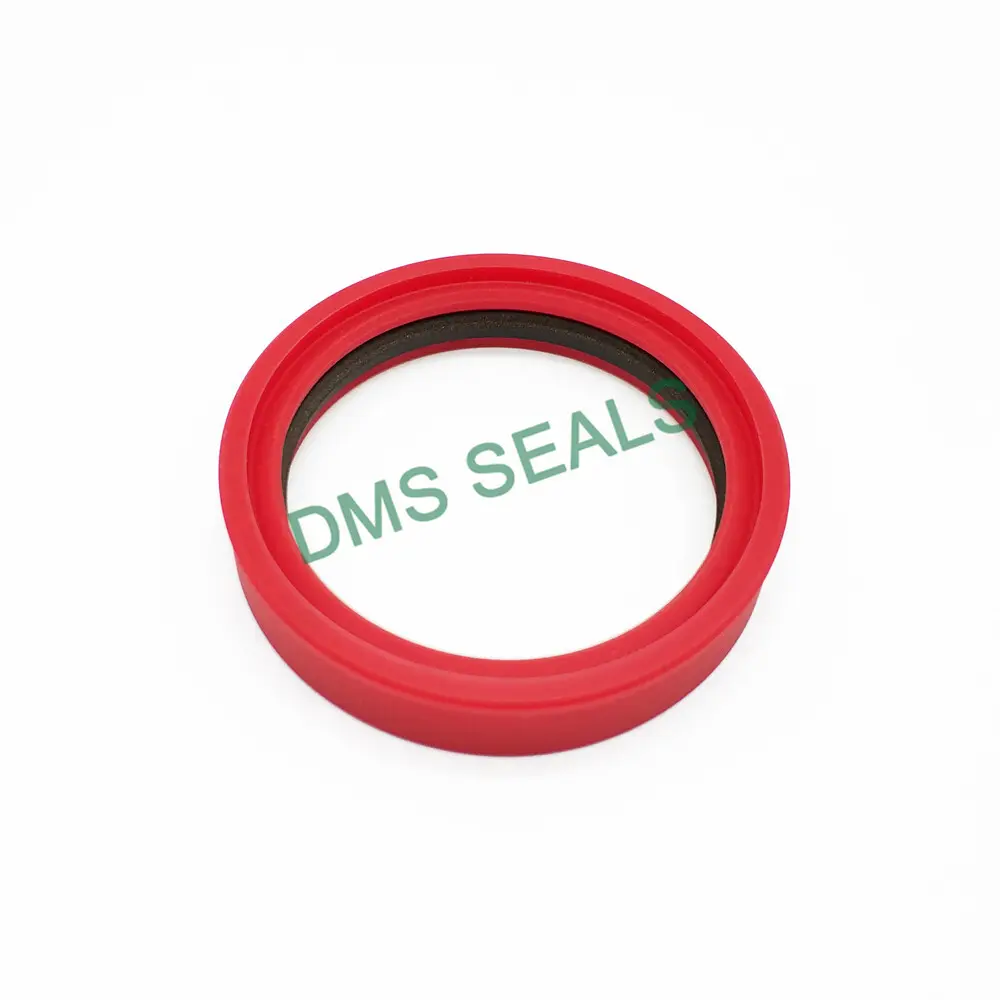

DMS Seals Bulk buy mechanical seal operation factory price for piston and hydraulic cylinder

Company Advantages
1. The design of DMS Seals has been carried out by taking into account many factors. They are biomechanical comfort, stress distribution, slip resistance, tear strength, and flexibility.
2. DMS Seals will go through complete production processes. These processes include CAD construction design based on feet shape, pattern making, materials cutting, stitching, and final assembly.
3. DMS Seals has been evaluated with regard to many aspects. They include flexibility, flexing resistance, colorfastness, hardness & thickness, and slip & fatigue resistance.
4. The designing for DMS Seals is exquisite. It reflects a strong craft tradition that is focused on utility and coupled with a human-centred design approach.
5. Our strict QC process makes sure the product is with good quality.
6. The product is carefully tested by professional QC staff in all respects, including durability, performance, etc.
7. mechanical seal operation has accumulated many positive feedback from our clients.
8. With the feature of adopted by high technology, the mechanical seal operation has become a kind of popular product.
9. This product meets with usage characteristics in this field.
10. Our mechanical seal operation always are sold with high quality service.
11. At present, the performance of mechanical seal operation in the local reputation and market is very gratifying.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. The obvious advantage of large scaled factory helps Dms Seals Technology Co.,limited consolidates the wide market of mechanical seal operation . When it comes to high-end meter seal manufacturer , DMS Seals is arguably the best on the market. Dms Seals Technology Co.,limited has provided high quality dowty seal manufacturer to China and the World. Dms Seals Technology Co.,limited is an evolving, efficient v seal manufacturers manufacture with a collaborative environment. Dms Seals Technology Co.,limited is one of the largest durametallic seal manufacturer in China.
2. There are advanced production equipment used for production of hydraulic cylinder piston seals . Through the investment in the high technology introduction, DMS Seals has enough capability to produce oil seal manufacturers . Having been strictly tested, our china oil seal manufacturers has gained more and more popularity. Dms Seals Technology Co.,limited has in-depth deployment of nation-wide specialized and large-scale lead seal manufacturers production bases. plays an important role in the quality assurance of sog oil seal manufacturer .
3. The worth of Dms Seals Technology Co.,limited would be to supply each provider with top quality seal ring manufacturers . Ask! Dms Seals Technology Co.,limited adheres to the development philosophy of respecting life and development trends. Ask! The goal of Dms Seals Technology Co.,limited would be to make quality products. Ask! In this booming society, DMS Seals aims to be a much better company in the area of soft seal suppliers . Ask!
