Application Scope
The
O-ring Seal of Dms Seals is applicable in the following scenes.Dms Seals is dedicated to solving your problems and providing you with one-stop and comprehensive solutions.
Company Advantages1. DMS Seals will go through scrutinization under the dimension admeasuring apparatus and hardness testers which features high precision, so as to guarantee its accuracy.
2. DMS Seals cylinder oil seal is developed under the combined theory of foot biomechanics and orthopedics. It is designed with the purpose of providing an ideal foot and lower limb structure for shoe wearing.
3. DMS Seals has passed the workmanship assessment. It is evaluated in terms of stitching, construction, attachments and fasteners, embellishments, shading within a garment, pattern continuity/matching, tapes, and linings.
4. DMS Seals is manufactured by a team of professional technicians. Comprehensive pool cleaning and water conditioning technologies are adopted during the preliminary stage.
5. The product features a strong structure. The match and the precision of the hole sites and dimension is high enough to guarantee the solidity of the cabinet body.
6. This product is of a safe level of toxicity. It is free of volatile organic compounds that have been linked to birth defects, endocrine disruption, and cancer.
7. This product has electromagnetic compatibility. Any EMC regulatory issues, from design concept to final production, are adequately resolved based on our complete knowledge of EMC legislation, guidelines, and standards.
8. This product is characterized by its insulation property. Its fabric used protects against heat in the summer and cold in the winter by providing thermal insulation as the fabric traps air between the fibers.
9. The purity of the product is higher than the natural one. Certain required ingredients are extracted to meet the purpose of applications.
10. The product is incredibly adaptable for people who want to make the most of the space- size, shape, flooring, walls, placement, etc.
11. Many of my customers love it and say the quality is good and it seems like a high-end gift. - Say one of our purchasers.
Installation Recommendation
![undefined undefined]()
Installation Sizes
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties
For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm |
| -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
d f8 | D H9 | H | L+0.2 | Order No. |
20
25
28 | 27.6
32.6
35.6 | 4.0
4.0
4.0 | 4.2
4.2
4.2 | DPT1-20*27.6*4.2
DPT1-25*32.6*4.2
DPT1-28*35.6*4.2 |
30
32
35 | 37.6
39.6
42.6 | 4.0
4.0
4.0 | 4.2
4.2
4.2 | DPT1-30*37.6*4.2
DPT1-32*39.6*4.2
DPT1-35*42.6*4.2 |
36
40
42 | 43.6
48.8
50.8 | 4.0
6.0
6.0 | 4.2
6.3
6.3 | DPT1-36*43.6*4.2
DPT1-40*48.8*6.3
DPT1-42*50.8*6.3 |
45
50
55 | 53.8
58.8
63.8 | 6.0
6.0
6.0 | 6.3
6.3
6.3 | DPT1-45*53.8*6.3
DPT1-50*58.8*6.3
DPT1-55*63.8*6.3 |
56
60
63 | 64.8
68.8
71.8 | 6.0
6.0
6.0 | 6.3
6.3
6.3 | DPT1-56*64.8*6.3
DPT1-60*68.8*6.3
DPT1-63*71.8*6.3 |
65
70
75 | 73.8
82.2
87.2 | 6.0
7.7
7.7 | 6.3
8.1
8.1 | DPT1-65*73.8*6.3
DPT1-70*82.2*8.1
DPT1-75*87.2*8.1 |
80
85
90 | 92.2
97.2
102.2 | 7.7
7.7
7.7 | 8.1
8.1
8.1 | DPT1-80*92.2*8.1
DPT1-85*97.2*8.1
DPT1-90*102*8.1 |
95
100
105 | 107.2
112.2
117.2 | 7.7
7.7
7.7 | 8.1
8.1
8.1 | DPT1-95*107*8.1
DPT1-100*112*8.1
DPT1-105*117*8.1 |
110
115
120 | 122.2
127.2
132.2 | 7.7
7.7
7.7 | 8.1
8.1
8.1 | DPT1-110*122*8.1
DPT1-115*127*8.1
DPT1-120*132*8.1 |
Company Features1. DMS Seals is favored by many users for its cylinder oil seal . Dms Seals Technology Co.,limited, whose technology is introduced from abroad, is a leading firm in field of hydraulic cylinder seals and wipers . The business of Dms Seals Technology Co.,limited has a global reach with production sites all over the worlds. Dms Seals Technology Co.,limited has accumulated a good reputation and image in rubber gasket design guide market.
2. We have employed a professional sales team. Their in-depth knowledge of the market allows us to build the appropriate sales strategy to maximize the product’s success. We have brought together many brilliant minds. They employ their creative thinking to the fullest and always make triumphs in the face of challenges or clients' problems. After many years of solid development, our company has grown into a sizable factory. There have been established complete production lines in the factory, including parts distribution lines, dust-free treatment lines, and final assembly lines. This proofs that the factory has achieved standardization production.
3. We have a commitment to deliver consistent customer delight. Our goal is to provide innovative products and services of the highest standards that surpass customer expectations of quality, delivery, and productivity. We take green production as our future development direction. We will focus on seeking sustainable raw materials, clean resources, and more environmental-friendly production ways. We are working on a more effective and greener production process. We make a production control plan that aims to remove waste and emissions from manufacturing processes through planning and organizing. We aim to improve the customer satisfaction rate. Under this goal, we will pull together the talented customer team and technicians to offer better services. We will focus on sustainability during manufacturing activities. This theme helps us to ensure that our commitment to good corporate citizenship is “brought to life” through a broad broad range of complementary and relevant initiatives.

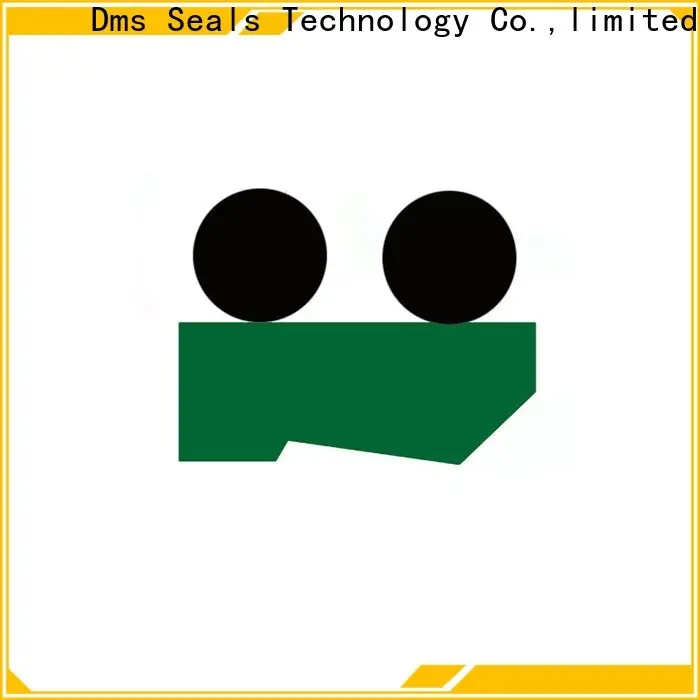

DMS Seals Best cylinder oil seal for business for forklifts
cylinder oil seal
Type:
