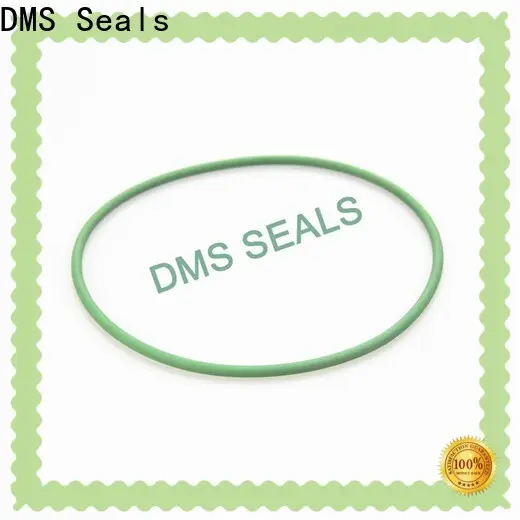

DMS Seals 0 rings online factory price in highly aggressive chemical processing

Company Advantages
1. DMS Seals 0 rings online is designed with consideration of all possible mechanisms. These mechanisms are aimed at helping the desired motion or the group of motions in this product.
2. DMS Seals needs to be checked and evaluated. It is checked with regard to shrinkage, oil and water repellency, print durability, seam performance, and side seam twist performance.
3. The design of DMS Seals is professionally done. It is the outcome of the art of decoration and science which shows harmonious unification of the kitchen.
4. DMS Seals will go through a series of quality testings. The testings, including physical and chemical properties, are conducted by the QC team who will evaluate the safety, durability, and the structural adequacy of each specified furniture.
5. The product is nonporous. It is processed under a high firing temperature which can eliminate all water bubble and air.
6. The product has unmatched temperature resistance. It can withstand temperature extremes from -155°F to 400°F without being deformed.
7. This product is not subject to air leakage. The materials used in it are finely stitched and sewed with excellent airtightness.
8. The product features low-temperature resistance. Due to its amorphous molecular structure, the low temperature has little effect on its properties.
9. With its new aesthetics and enhanced functionality, this product acts as a practical solution for designers. It will be an important part of renovations.
10. With all these features, this piece of furniture will make people's life easier and provide them with warmth in spaces.
11. Using this product acts as a way to express people's individual style. It says something about who they are and represents their personal choices.

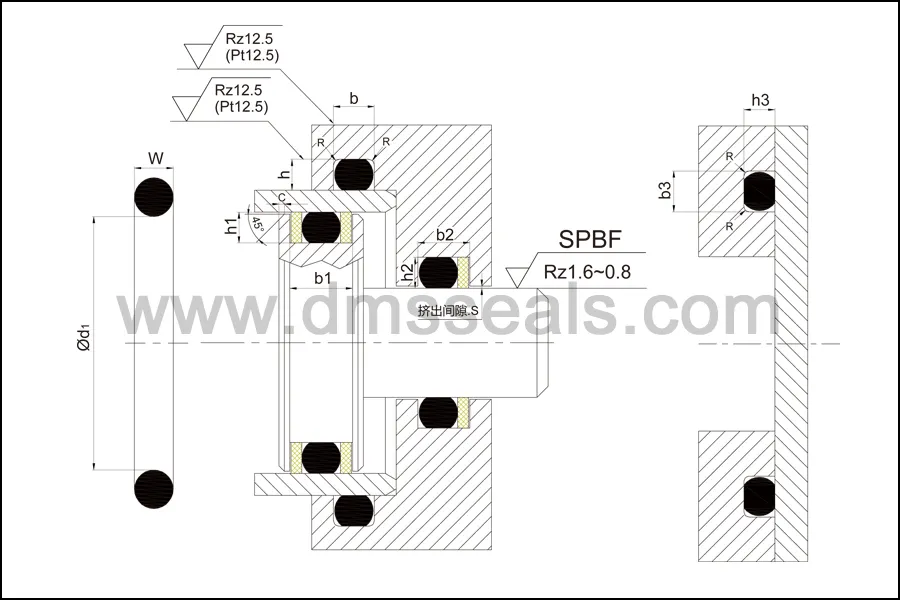

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

NBR / FKM

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited is one of the companies specializing in 0 rings online . After years of steady development, Dms Seals Technology Co.,limited has grown to be a leading manufacturer of extra large o rings . DMS Seals is an excellent brand in the industry.
2. We have expanded our selling channels in different countries. They mainly include Europe, South America, Middle East, and Southeast Asia. Our products, in these markets, sell like hotcakes. The strong R&D team is a power to promote our growth. They all have excellent educational backgrounds. With knowledge and deep industry know-how, they are always able to offer customers satisfying product solutions. We have advanced manufacturing facilities. This allows us to place the highest level of attention to quality control throughout the production process, from start to finish. We gather elites for research & development and manufacturing. They are highly qualified in this industry, which ensuring innovative product development and efficient production management.
3. We fight against climate change by our practical actions in the production. We will try to upgrade the industrial structure towards a cleaner and more environmental-friendly way. We try to practice sustainable development. We are focused on reducing the ecological footprint of our products and packaging by carefully selecting the most appropriate raw materials. We think customer satisfaction as core part of our business. We work to exceed our client’s expectations while addressing their needs and providing professional services. We put clients as the core of operations. We listen to their demands, concern, and complaints, and we always proactively cooperate with them to address problems about the orders. Sustainability is embedded in our operational practices. We have made great efforts in energy efficiency and pollution reduction. We also have embedded sustainability in culture.
