DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer rod O Ring Manufacturers o to
- Dms Seals has a group of experienced and professional technical personnel and management teams. This provides favorable conditions for corporate development.
- Dms Seals strictly follows the actual needs of customers and provides them with professional and quality services.
- Dms Seals's constant goal is to create a renowned brand and to become a leader in the industry. Our commitment is to provide quality products and services for consumers.
- Since the establishment in 2006, Dms Seals has successively obtained various certifications in the industrial parts industry. Besides, we have become a leader in the industrial industry with our growing production scale.
- Dms Seals combines online sales channels with offline channels, so as to construct the nationwide sales network. This contributes to the rapid increment of sales volume.

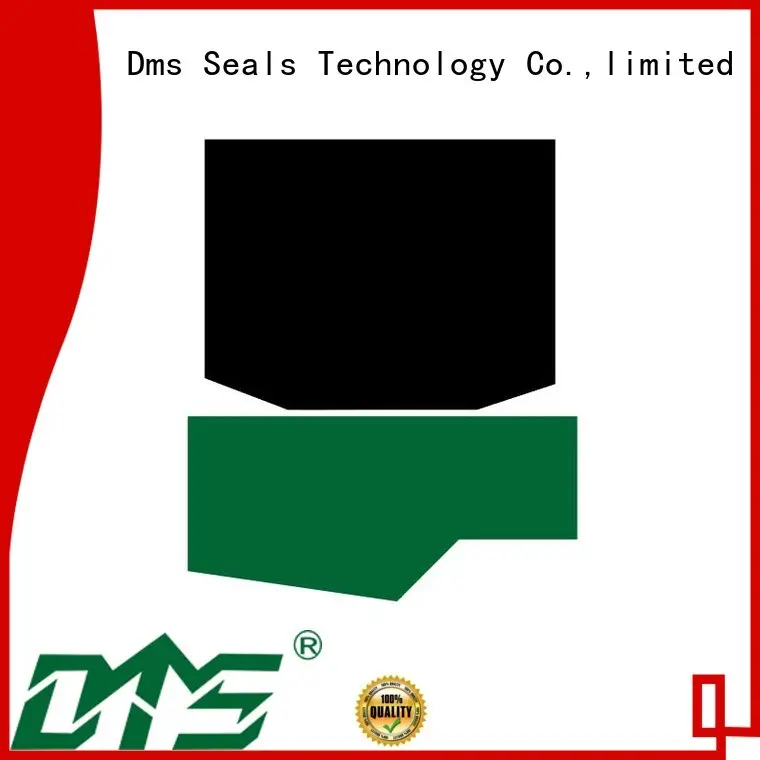

1. The offered DMS Seal Manufacturer push rod seal is designed by a team of experienced professionals.
2. The product, bringing customers many economic benefits, is believed to be more widely used in the market.
3. Providing high-quality O Ring Manufacturers products for customers is Dms Seals Technology Co.,limited' s commitment.
1. Installation Recommendation
2. Installation Sizes
Rod Diameter | Outer Diameter | Groove Width | Install Chamfer | Radius | Radial Clearance S max. | ||
d f8 | D H8 | L+0.2 | L1 | R1 | 10MPa | 20MPa | 40MPa |
50-69.9 | d+15.0 | 7.5 | 5.0 | 0.4 | 0.5 | 0.4 | 0.3 |
70-149.9 | d+20.0 | 10.1 | 6.0 | 0.4 | 0.7 | 0.5 | 0.4 |
200-244.9 | d+25.0 | 12.5 | 8.5 | 0.4 | 0.8 | 0.6 | 0.5 |
245-519.9 | d+30.0 | 15.0 | 10.0 | 0.8 | 0.9 | 0.7 | 0.6 |
520-769.9 | d+35.0 | 17.5 | 13.0 | 1.2 | 1.0 | 0.8 | 0.7 |
770-1500 | d+40.0 | 20.0 | 15.0 | 1.2 | 1.0 | 0.8 | 0.7 |
3. Application and properties
Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.
4. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
5. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 60MPa | -30℃ +100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water, gas |
6. Installation Dimensions
Outer Dia. | Groove Width | Order No. | |
d f8 | D H8 | L+0.2 | |
50 60 70 | 65 75 85 | 7.5 7.5 7.5 | GSJ-W50*65*7.5 GSJ-W60*75*7.5 GSJ-W70*85*7.5 |
75 80 100 | 95 100 120 | 10 10 10 | GSJ-W75*95*10 GSJ-W80*100*10 GSJ-W100*120*10 |
110 115 120 | 130 135 140 | 10 10 10 | GSJ-W110*130*10 GSJ-W115*135*10 GSJ-W120*140*10 |
130 140 145 | 150 160 165 | 10 10 10 | GSJ-W130*150*10 GSJ-W140*160*10 GSJ-W145*165*10 |
150 160 170 | 170 180 190 | 10 10 10 | GSJ-W150*170*10 GSJ-W160*180*10 GSJ-W170*190*10 |
175 180 200 | 195 200 220 | 10 10 10 | GSJ-W175*195*10 GSJ-W180*200*10 GSJ-W200*220*10 |
230 240 250 | 255 265 275 | 12.5 12.5 12.5 | GSJ-W230*255*12.5 GSJ-W240*265*12.5 GSJ-W250*275*12.5 |
260 265 270 | 285 290 295 | 12.5 12.5 12.5 | GSJ-W260*285*12.5 GSJ-W265*290*12.5 GSJ-W270*295*12.5 |
280 290 300 | 305 315 325 | 12.5 12.5 12.5 | GSJ-W280*305*12.5 GSJ-W290*315*12.5 GSJ-W300*325*12.5 |
Company Features
1. With the emergence and broad development prospect of O Ring Manufacturers , Dms Seals Technology Co.,limited has becomes more and more popular.
2. Our strong technical capabilities can accelerate the production of large quantities of output o-ring seal.
3. It is the permanent tenet for Dms Seals Technology Co.,limited to go after push rod seal. Get quote!
