Company Advantages1. DMS Seal Manufacturer pneumatic piston seals goes through rigorous inspections and quality controls to ensure quality. From raw materials to finished goods, our inspection team eliminates defects and non-compliance during different stages of the production process. Our products mainly include
rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
2. We have been leading the new fashion of hydraulic piston seals industry, and have brought pneumatic piston seals to every user. DMS Seals provides professional design and production of high-grade
o-ring seals
3. The product is skin-friendly. The fibers have a smooth feel and a natural wicking action that keeps moisture away from the skin. Seal we produced has applications in a wide range of fields
4. The product is adaptable and movable. Its compact size allows it to be flexible in a variety of scenarios and its peripheral equipment can be easily removed. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
Installation Recommendation
![undefined undefined]()
Application and properties

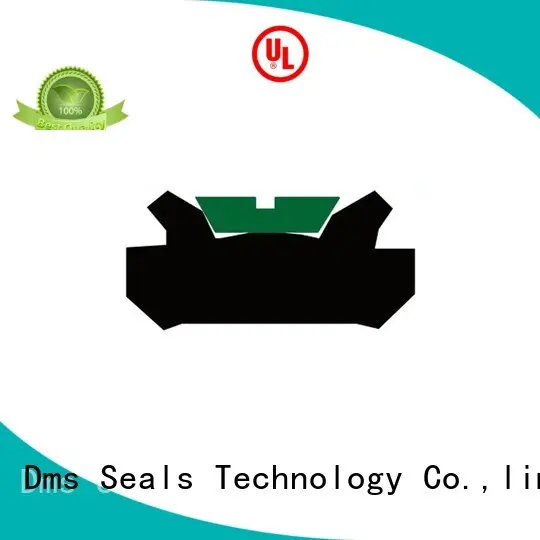

Suitable for seals of pistons and plungers, tandem seals for a variety of liquid applications are internal seals. Before installation, the sealing lip is protruded outwards, and the cylinder liner is pressed tightly after installation to provide elasticity for the wear ring, excellent sealing results can be achieved even in the absence of pressure. It can separate the liquid on both sides of the sealing ring, so it is also suitable for the sealing of the oil chamber, and the invasion of other liquids can be prevented. High wear resistance, low friction, no crawling phenomenon.
Sealing ring: filled PTFE
Elastomer: NBR / PU
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-25MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L+0.2 | e | Order No. |
40 45 50 | 30 35 40 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA40*30*16 DDMA45*35*16 DDMA50*40*16 |
56 63 65 | 46 53 55 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA56*46*16 DDMA63*53*16 DDMA65*55*16 |
70 75 80 | 60 65 70 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA70*60*16 DDMA75*65*16 DDMA80*70*16 |
85 90 95 | 75 80 85 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA85*75*16 DDMA90*80*16 DDMA95*85*16 |
100 105 115 | 90 95 105 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA100*90*16 DDMA105*95*16 DDMA115*105*16 |
120 125 130 | 110 113 118 | 15 15 15 | 16 16 16 | 7 10 10 | DDMA120*110*16 DDMA125*113*16 DDMA130*118*16 |
135 140 145 | 123 128 133 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA135*123*16 DDMA140*128*16 DDMA145*133*16 |
150 155 160 | 138 143 148 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA150*138*16 DDMA155*143*16 DDMA160*148*16 |
170 180 190 | 158 168 178 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA170*158*16 DDMA180*168*16 DDMA190*178*16 |
200 210 220 | 188 198 208 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA200*188*16 DDMA210*198*16 DDMA220*208*16 |
225 235 240 | 213 223 228 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA225*213*16 DDMA235*223*16 DDMA240*228*16 |
Company Features1. With a view to reaching high quality demands, Dms Seals Technology Co.,limited uses imported superior raw material and advanced production facilities.
2. Going forward, Dms Seals Technology Co.,limited aims to expand its strong positions in hydraulic piston seals field. Inquiry!
