DMS Seal Manufacturer Latest pneumatic piston seals glyd ring for sale
- Dms Seals provides comprehensive and professional services such as design solutions and technical consultations based on the actual needs of customers.
1. The production equipment of DMS Seal Manufacturer is constantly updated in recent years, including automatic inspection machine, trimming machine, spring loading and packing machine.
2. DMS Seal Manufacturer is produced using specific techniques in the inflatable product industry. These techniques have been taken into full consideration with pneumatic principle before applied.
3. DMS Seal Manufacturer is carried out by our professional designers who keep up with customers' requirements relating to the uniqueness of visual appearance and the care of perfectly finished elements.
4. DMS Seal Manufacturer is manufactured according to strict quality standards and complying with international safety regulations in the tent industry.
5. Compared with other , pneumatic piston seals exhibited features like .
6. Under the standard circumstance, ensures the feasibility of pneumatic piston seals .
7. pneumatic piston seals excels due to its obvious features like .
8. pneumatic piston seals has strengths such as , long service life and wide application area.
9. pneumatic piston seals can offer better comprehensive properties including , and thus can be used in wide applications.
10. Dms Seals Technology Co.,limited combines professional experience, advanced technology and worldwide network.
11. With bright industry prospects, this product is bound to bring benefits to customers.
12. DMS Seal Manufacturer has set up its own global sales channel for pneumatic piston seals .
13. It can be modified flexibly based on the customers' requirements.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
40 - 79.9 | 25 - 140 | DN - 10.0 | 6.3 | 0.6 | 0.3 | 0.2 | 0.15 | 2.62 | 1.78 |
80 - 132.9 | 50 - 250 | DN - 13.0 | 8.3 | 1.0 | 0.4 | 0.3 | 0.15 | 3.53 | 2.62 |
133 - 252.9 | 100 - 480 | DN - 18.0 | 12.3 | 1.3 | 0.4 | 0.3 | 0.20 | 5.33 | 3.53 |
463 - 700 | 425 - 700 | DN - 31.0 | 16.3 | 1.8 | 0.5 | 0.4 | 0.30 | 7.00 | 5.33 |
Application and properties

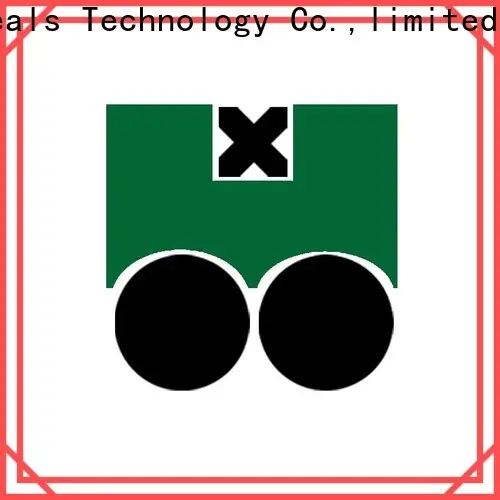

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+200℃ | 3 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
40 | 30 | 6.3 | DAQ2-40*30*6.3 | 29.82*2.62 |
48 | 38 | 6.3 | DAQ2-48*38*6.3 | 37.77*2.62 |
55 | 45 | 6.3 | DAQ2-55*45*6.3 | 44.12*2.62 |
65 | 55 | 6.3 | DAQ2-65*55*6.3 | 53.64*2.62 |
80 | 67 | 8.3 | DAQ2-80*67*8.3 | 66.27*3.53 |
95 | 82 | 8.3 | DAQ2-95*82*8.3 | 78.97*3.53 |
110 | 97 | 8.3 | DAQ2-110*97*8.3 | 94.84*3.53 |
125 | 112 | 8.3 | DAQ2-125*112*8.3 | 110.72*3.53 |
140 | 122 | 12.3 | DAQ2-140*122*12.3 | 120.02*5.33 |
