DMS Seal Manufacturer hydraulic rod seals company for pressure work and sliding high speed occasions

Company Advantages
1. In the production process of DMS Seal Manufacturer , our experts keep the standards of the product in line.
2. DMS Seal Manufacturer is manufactured using sophisticated manufacturing facilities.
3. DMS Seal Manufacturer is manufactured utilizing premium materials sourced from the certified vendors.
4. DMS Seal Manufacturer hydraulic rod seals shows the finest craftsmanship in the industry as it is elaborately produced by using the industry-leading technology.
5. The whole production process of DMS Seal Manufacturer hydraulic rod seals is guided and supervised by experienced professionals.
6. This product is hypoallergenic, which makes it an excellent choice for people with eczema, sensitive skin and allergies.
7. With its fabric's breathability and high functionality, this product is the ideal solution for warm sleep, especially since it provides excellent heat control and high moisture-absorbing level.
8. This product has the characteristics of high efficiency. It produces the expected results in the shortest amount of time without any serious errors.
9. With a compact size, this product is meticulously designed to ensure proper stacking and ultimately take up less space.
10. This product is hypoallergenic, thus it is gentler on the skin and can significantly reduce the risk of an allergic reaction.
11. The product is widely used in the market for its fine characteristics and remarkable advantages.
12. The product has a wide application value and commercial value.
13. This product has many significant advantages and has won more and more global customers.
14. The product, available at such a competitive price, is widely used in the market.

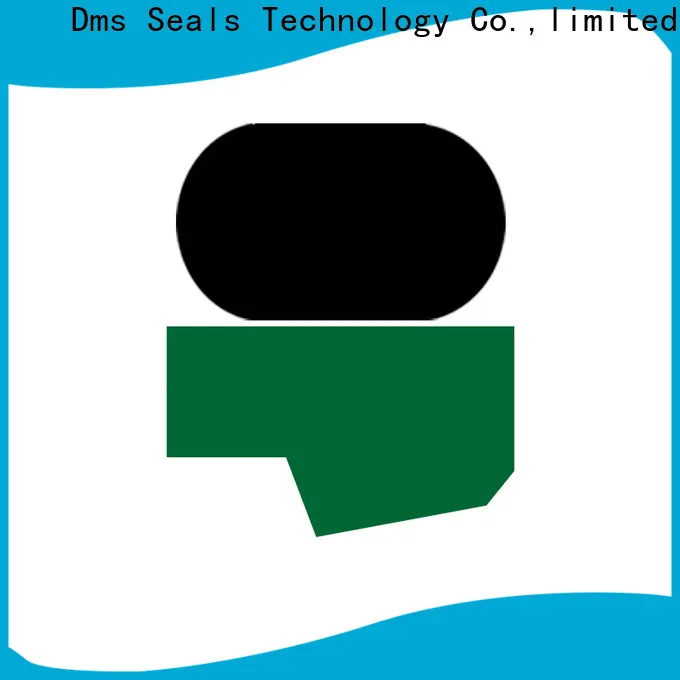

1. Installation Recommendation

2. Installation Sizes

Rod Diameter                         dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
dN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2	21.89*2.62 23.39*3.53 23.47*2.62
22 25 25	32.7 32.3 35.7	4.2 3.2 4.2	GSJ22*32.7*4.2 GSJ25*32.3*3.2 GSJ25*35.7*4.2	26.57*3.53 26.64*2.62 29.74*3.53
28 30 32	38.7 40.7 42.7	4.2 4.2 4.2	GSJ28*38.7*4.2 GSJ30*40.7*4.2 GSJ32*42.7*4.2	31.34*3.53 34.52*3.53 36.09*3.53
35 36 38	45.7 46.7 53.1	4.2 4.2 6.3	GSJ35*45.7*4.2 GSJ36*46.7*4.2 GSJ38*53.1*6.3	37.69*3.53 40.87*3.53 43.82*5.33
40 40 42	50.7 55.1 57.1	4.2 6.3 6.3	GSJ40*50.7*4.2 GSJ40*55.1*6.3 GSJ42*57.1*6.3	44.04*3.53 43.82*5.33 46.99*5.33
45 45 50	55.7 60.1 60.7	4.2 6.3 4.2	GSJ45*55.7*4.2 GSJ45*60.1*6.3 GSJ50*60.7*4.2	47.22*3.53 50.17*5.33 53.57*3.53
50 55 56	65.1 70.1 66.7	6.3 6.3 4.2	GSJ50*65.1*6.3 GSJ55*70.1*6.3 GSJ56*66.7*4.2	56.52*5.33 59.69*5.33 59.92*3.53
56 56 60	71.1 76.5 75.1	6.3 8.1 6.3	GSJ56*71.1*6.3 GSJ56*76.5*8.1 GSJ60*75.1*6.3	59.69*5.33 62.87*6.99 66.04*5.33
