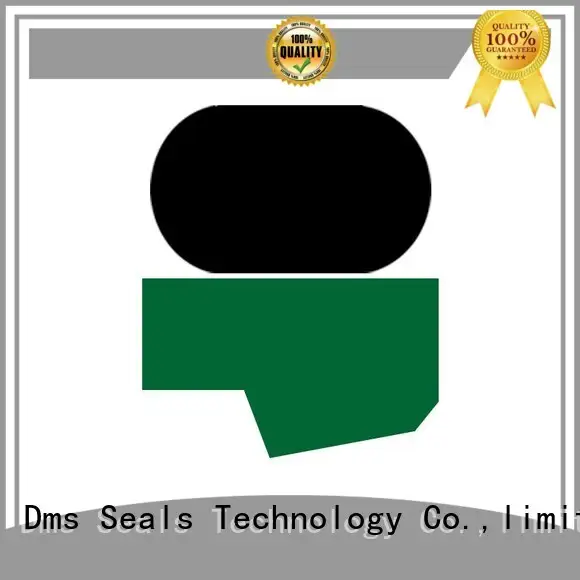

Custom oring hydraulic rod seals DMS Seal Manufacturer seal

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-30℃+200℃

15 m/s

hydraulic oil, flame retardant liquid, water, gas

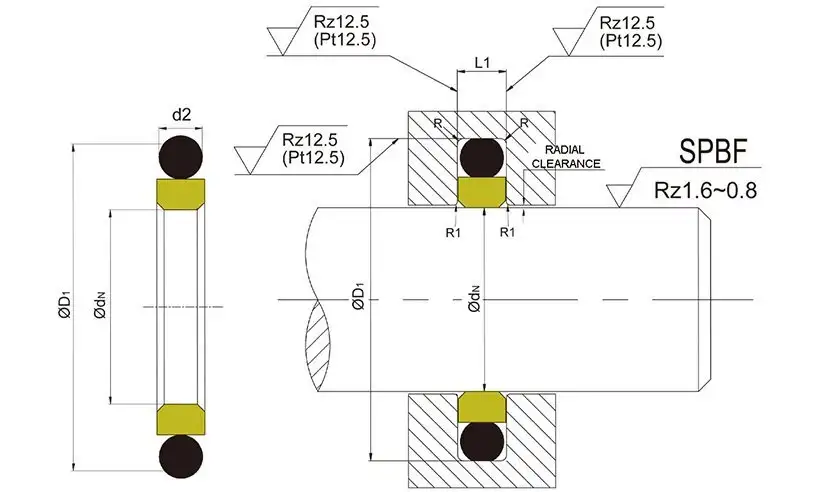

d h9

D1  H9

L1+0.2

40
45
50

50
55
60

4.2
4.2
4.2

GSW40*50*4.2
GSW45*55*4.2
GSW50*60*4.2

50
53
55

65
63
65

6.8
4.2
4.2

GSW50*65*6.8
GSW53*63*4.2
GSW55*65*4.2

55
60
60

70
70
75

6.8
4.2
6.8

GSW55*70*6.8
GSW60*70*4.2
GSW60*75*6.8

63
65
65

73
75
80

4.2
4.2
6.8

GSW63*73*4.2
GSW65*75*4.2
GSW65*80*6.8

67
70
70

77
80
82

4.2
4.2
6.8

GSW67*77*4.2
GSW70*80*4.2
GSW70*85*6.8

75
75
80

85
90
90

4.2
6.8
4.2

GSW75*85*4.2
GSW75*90*6.8
GSW80*90*4.2

80
85
90

75
100
105

6.8
6.8
6.8

GSW80*95*6.8
GSW85*100*6.8
GSW90*105*6.8

95
100
106

110
115
121

6.8
6.8
6.8

GSW95*110*6.8
GSW100*115*6.8
GSW106*121*6.8

110
115
120

125
130
135

6.8
6.8
6.8

GSW110*125*6.8
GSW115*130*6.8
GSW120*135*6.8

125
130
135

140
145
150

6.8
6.8
6.8

GSW125*140*6.8
GSW130*145*6.8
GSW135*150*6.8

140
145
150

155
160
165

6.8
6.8
6.8

GSW140*155*6.8
GSW145*160*6.8
GSW150*165*6.8

155
160
165

170
175
180

6.8
6.8
6.8

GSW155*170*6.8
GSW160*175*6.8
GSW165*180*6.8

170
175
180

185
190
200

6.8
6.8
8.1

GSW170*185*6.8
GSW175*190*6.8
GSW180*200*8.1
