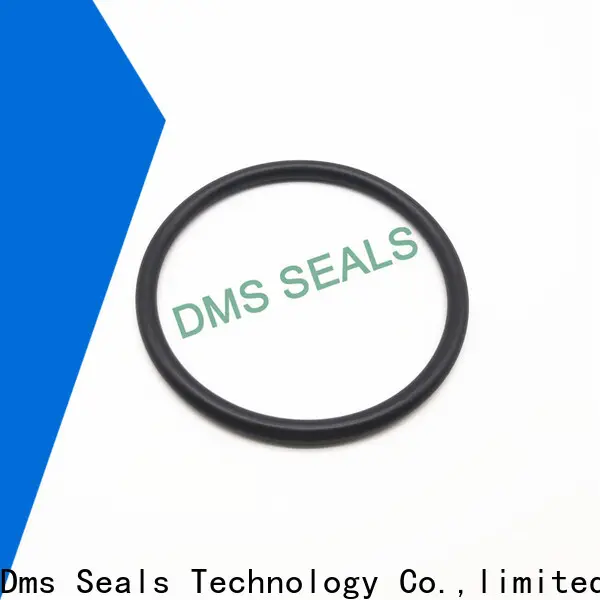

Best o ring seal groove dimensions for business in highly aggressive chemical processing
- Dms Seals adheres to the service concept to be sincere, devoted, considerate and reliable. We are dedicated to providing customers with comprehensive and quality services to meet the different needs of customers. We look forward to building win-win partnerships.
1. An appealing range of colors, finishes, and details let customers create the o ring seal groove dimensions they’ve dreamed of. .
2. DMS Seals is fabricated using optimum quality raw materials and pioneering technology.
3. DMS Seals is fabricated using the top-grade raw material and sophisticated production technology.
4. This product is safe in use. It has been designed with 10 safety mechanisms, such as overload and overvoltage protection to guard against any accidents.
5. The product is easy to use. It is exclusively designed with functions to enhance the using experience together with the phones.
6. This mineral product is a homogeneous body. Its atoms in the atomic structure are highly orderly arranged as a result of crystallization.
7. There is no doubt that without the high-quality customer service, DMS Seals could not have been so popular in this market.
8. The popularity of o ring seal groove dimensions also can contribute to its strict quality assurance.
9. By offering reliable installation service, DMS Seals has gained more trustworthy clients.
10. Dms Seals Technology Co.,limited's products have won good appraise from our customers.
11. With competitive price, our o ring seal groove dimensions has been more popular which also makes DMS Seals to be more competitive.
1. Installation Recommendation
2. Application and properties
Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.
3. Standard materials
NBR / FKM
4. Performance parameter
Static Seal | Dynamic Seal | |
Working Pressure | No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa. | No support ring, up to 5MPa; With the support ring, higher pressure. |
Movement Speed | Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s. | |
Temperature | NBR: -30℃ - 100℃; FKM: -20℃ - 220℃. | |
5. Wire Diameter Tolerance
Wire diameter of O-Ring (mm) | Tolerance (±mm) |
0-1.8 | 0.08 |
1.80-2.65 | 0.09 |
2.65-3.55 | 0.10 |
3.55-5.30 | 0.13 |
5.30-7.00 | 0.15 |
7.00-8.00 | 0.18 |
8.00-10.00 | 0.21 |
10.00-12.00 | 0.25 |
6. Inner diameter tolerance
Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm | Inner Diameter d1 mm | Tolerance ±mm |
0.70-2.50 2.50-4.50 4.50-6.30 | 0.13 0.14 0.15 | 43.70-45.00 46.00-46.20 46.20-47.50 | 0.42 0.43 0.44 | 95.00-97.50 97.50-100.00 100.00-103.00 | 0.83 0.84 0.87 |
6.30-8.50 8.50-10.00 10.00-11.20 | 0.16 0.17 0.18 | 47.50-48.70 48.70-50.00 50.00-51.50 | 0.45 0.46 0.47 | 103.00-106.00 106.00-109.00 109.00-112.00 | 0.89 0.91 0.93 |
11.20-14.00 14.00-16.00 16.00-18.00 | 0.19 0.20 0.21 | 51.50-53.00 53.00-54.50 54.50-56.00 | 0.48 0.50 0.51 | 112.00-115.00 115.00-118.00 118.00-122.00 | 0.95 0.97 1.00 |
18.00-20.00 20.00-21.20 21.20-23.60 | 0.22 0.23 0.24 | 56.00-58.00 58.00-60.00 60.00-61.50 | 0.52 0.54 0.55 | 122.00-125.00 125.00-128.00 128.00-132.00 | 1.03 1.05 1.08 |
23.60-25.00 25.00-26.50 26.50-28.00 | 0.25 0.26 0.28 | 61.50-63.00 63.00-65.00 65.00-67.00 | 0.56 0.58 0.59 | 132.00-136.00 136.00-140.00 140.00-145-00 | 1.10 1.13 1.17 |
28.00-30.00 30.00-31.50 31.50-33.50 | 0.29 0.31 0.32 | 67.00-69.00 69.00-71.00 71.00-73.00 | 0.61 0.63 0.64 | 145.00-150.00 150.00-155.00 155.00-160.00 | 1.20 1.24 1.27 |
33.50-34.50 34.50-35.50 35.50-36.50 | 0.33 0.34 0.35 | 73.00-75.00 75.00-77.50 77.50-80.00 | 0.66 0.67 0.69 | 160.00-165.00 165.00-170.00 170.00-175.00 | 1.31 1.34 1.38 |
36.50-37.50 37.50-38.70 38.70-40.00 | 0.36 0.37 0.38 | 80.00-82.50 82.50-85.00 85.00-87.50 | 0.71 0.73 0.75 | 175.00-180.00 180.00-185.00 185.00-190.00 | 1.41 1.44 1.48 |
40.00-41.20 41.20-42.50 42.50-43.70 | 0.39 0.40 0.41 | 87.50-90.00 90.00-92.50 92.50-95.00 | 0.77 0.79 0.81 | 190.00-195.00 195.00-200.00 200.00-206.00 | 1.51 1.55 1.59 |
206.00-212.00 212.00-218.00 224.00-230.00 | 1.63 1.71 1.75 | 325.00-335.00 335.00-345.00 345.00-355.00 | 2.43 2.49 2.56 | 500.00-515.00 515.00-530.00 530.00-545.00 | 3.54 3.63 3.72 |
230.00-236.00 236.00-243.00 243.00-250.00 | 1.79 1.83 1.88 | 355.00-365.00 365.00-375.00 375.00-387.00 | 2.62 2.68 2.76 | 545.00-560.00 560.00-580.00 580.00-600.00 | 3.81 3.93 4.05 |
250.00-258.00 258.00-265.00 265.00-272.00 | 1.93 1.98 2.02 | 387.00-400.00 400.00-412.00 412.00-425.00 | 2.84 2.91 2.99 | 600.00-615.00 615.00-630.00 630.00-650.00 | 4.13 4.22 4.34 |
272.00-280.00 280.00-290.00 290.00-300.00 | 2.08 2.14 2.21 | 425.00-437.00 437.00-450.00 450.00-462.00 | 3.07 3.15 3.22 | 650.00-670.00 | 4.46 |
300.00-307.00 307.00-315.00 315.00-325.00 | 2.25 2.30 2.37 | 462.00-475.00 475.00-485.00 485.00-500.00 | 3.30 3.37 3.45 |
Company Features
1. DMS Seals has made great achievements in producing high quality o ring seal groove dimensions . DMS Seals is capable of producing high quality nbr o ring manufacturers with its strong technical force. Dms Seals Technology Co.,limited is a company specialized in o ring coating that based in its ample knowledge of the industry. Dms Seals Technology Co.,limited is a major large o ring set supplier and deeply relied by customers.
2. Under the strict quality control system, DMS Seals has its determination to provide the best quality service to customers. Dms Seals Technology Co.,limited is able to keep operational costs at a minimum and ensure all of resources are being maximized. Dms Seals Technology Co.,limited has a number of large-scale production lines for o ring kit manufacturer .
3. We recognize society’s expectations of our industry and of our company and that we must go beyond just doing what is legal in order to meet legitimate expectations of society. We stick to sustainable development. We keep eco-friendly manufacturing, reduce waste through reuse and building quality products that last and thereby promoting sustainability. Our sustainability work is integrated into our business culture and values. In our operation, we will work to ensure that production wastes are lawfully handled and resources are fully utilized. Our company understands the global nature of today’s manufacturing and we are ready to support customers' needs. Our products and service will always be custom-tailored to meet these needs.
Best o ring seal groove dimensions for business in highly aggressive chemical processing
o ring seal groove dimensions
