rod nbrfkm DMS Seal Manufacturer Brand hydraulic rod seals

rod nbrfkm DMS Seal Manufacturer Brand hydraulic rod seals

rod nbrfkm DMS Seal Manufacturer Brand hydraulic rod seals
  • rod nbrfkm DMS Seal Manufacturer Brand hydraulic rod seals
  • rod nbrfkm DMS Seal Manufacturer Brand hydraulic rod seals

rod nbrfkm DMS Seal Manufacturer Brand hydraulic rod seals

Diameter Range
3-1600mm
Pressure Range
0-60MPa
Temperature Range
-45℃+200℃
Speed
15 m/s
Medium
hydraulic oil, flame retardant liquid, water, gas
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals. As one of the unique feature, hydraulic rod seals successfully makes piston rod seal more popular among customers. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals
2. Dms Seals Technology Co.,limited, well-known for its superior quality, will provide first-class service. To reduce costs with high-efficiency work is the DMS's purpose
3. Seal we produced has applications in a wide range of fields. The principle of hydraulic rod seals online of rod seals,rod seal catalogue is proposed for DMS Seal Manufacturer to select materials.

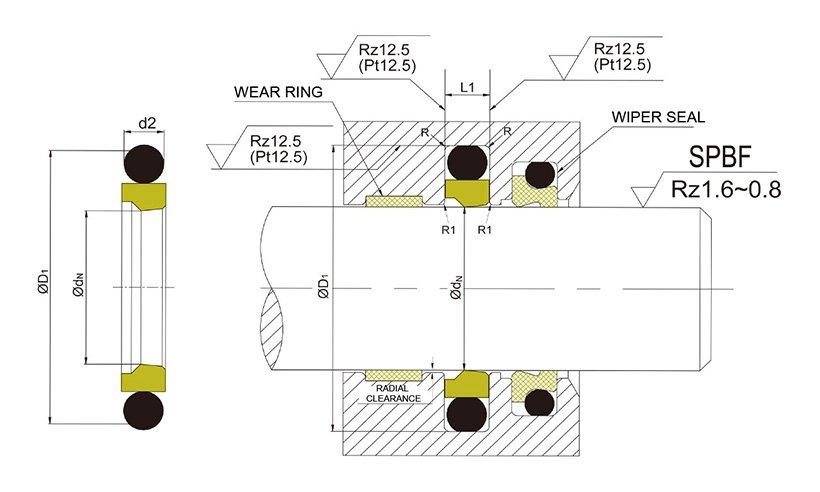

Installation Recommendation

DMS Seal Manufacturer-Gsj - Ptfe Hydraulic Rod Seal With Nbrfkm O-ring | Rod Seals

Installation Sizes

Rod Diameter dN h9

Groove Diameter

Groove Width

Radius

Radial Clearance S max.

O-Ring Cross-Section

Standard Application

Light Application

Heavy Duty Application

D1 H9

L1+0.2

R1

10MPa

20MPa

40MPa

d2

3-7.9

8-18.9

-

dN+4.9

2.2

0.4

0.3

0.20

0.15

1.78

8-18.9

19-37.9

-

dN+7.3

3.2

0.6

0.4

0.25

0.15

2.62

19-37.9

38-199.9

8-18.9

dN+10.7

4.2

1.0

0.4

0.25

0.20

3.53

38-199.9

200-255.9

19-37.9

dN+15.1

6.3

1.3

0.5

0.30

0.20

5.33

200-255.9

256-649.9

38-199.9

dN+20.5

8.1

1.8

0.6

0.35

0.25

7.00

256-649.9

650-999.9

200-255.9

dN+24.0

8.1

1.8

0.6

0.35

0.25

7.00

650-999.9

≥1000.0

256-649.9

dN+27.3

9.5

2.5

0.7

0.50

0.30

8.40

≥1000.0

-

650-999.9

dN+38.0

13.8

3.0

1.0

0.70

0.60

12.00

Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-45℃+200℃

15 m/s

hydraulic oil, flame retardant liquid,    water, gas

Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

dN h9

D1 H9

L1+0.2

4
5
6

8.9
9.9
10.9

2.2
2.2
2.2

GSJ4*8.9*2.2
GSJ5*9.9*2.2
GSJ6*10.9*2.2

5.28*1.78
6.75*1.78
7.65*1.78

8
8
10

12.9
15.3
14.9

2.2
3.2
2.2

GSJ8*12.9*2.2
GSJ8*15.3*3.2
GSJ10*14.9*2.2

9.25*1.78
10.77*2.62
11.8*1.78

10
12
12

17.3
16.9
19.3

3.2
2.2
3.2

GSJ10*17.3*3.2
GSJ12*16.9*2.2
GSJ12*19.3*3.2

12.37*2.62
13.3*1.78
13.94*2.62

14
14
15

18.9
21.3
19.9

2.2
3.2
2.2

GSJ14*18.9*2.2
GSJ14*21.3*3.2
GSJ15*19.9*2.2

15.6*1.78
15.54*2.62
16.67*1.78

15
16
16

22.3
20.9
23.3

3.2
2.2
3.2

GSJ15*22.3*3.2
GSJ16*20.9*2.2
GSJ16*23.3*3.2

17.12*2.62
17.17*1.78
18.72*2.62

18
18
19

22.9
25.3
29.7

2.2
3.2
4.2

GSJ18*22.9*2.2
GSJ18*25.3*3.2
GSJ19*29.7*4.2

18.77*1.78
20.29*2.62
23.39*3.53

20
20
22

27.3
30.7
29.3

3.2
4.2
3.2

GSJ20*27.3*3.2
GSJ20*30.7*4.2
GSJ22*29.3*3.2

21.89*2.62
23.39*3.53
23.47*2.62

22
25
25

32.7
32.3
35.7

4.2
3.2
4.2

GSJ22*32.7*4.2
GSJ25*32.3*3.2
GSJ25*35.7*4.2

26.57*3.53
26.64*2.62
29.74*3.53

28
30
32

38.7
40.7
42.7

4.2
4.2
4.2

GSJ28*38.7*4.2
GSJ30*40.7*4.2
GSJ32*42.7*4.2

31.34*3.53
34.52*3.53
36.09*3.53

35
36
38

45.7
46.7
53.1

4.2
4.2
6.3

GSJ35*45.7*4.2
GSJ36*46.7*4.2
GSJ38*53.1*6.3

37.69*3.53
40.87*3.53
43.82*5.33

40
40
42

50.7
55.1
57.1

4.2
6.3
6.3

GSJ40*50.7*4.2
GSJ40*55.1*6.3
GSJ42*57.1*6.3

44.04*3.53
43.82*5.33
46.99*5.33

45
45
50

55.7
60.1
60.7

4.2
6.3
4.2

GSJ45*55.7*4.2
GSJ45*60.1*6.3
GSJ50*60.7*4.2

47.22*3.53
50.17*5.33
53.57*3.53

50
55
56

65.1
70.1
66.7

6.3
6.3
4.2

GSJ50*65.1*6.3
GSJ55*70.1*6.3
GSJ56*66.7*4.2

56.52*5.33
59.69*5.33
59.92*3.53

56
56
60

71.1
76.5
75.1

6.3
8.1
6.3

GSJ56*71.1*6.3
GSJ56*76.5*8.1
GSJ60*75.1*6.3

59.69*5.33
62.87*6.99
66.04*5.33

63
63
65

73.7
78.1
75.7

4.2
6.3
4.2

GSJ63*73.7*4.2
GSJ63*78.1*6.3
GSJ65*75.7*4.2

66.27*3.53
69.22*5.33
69.44*3.53

65
70
70

80.1
80.7
85.1

6.3
4.2
6.3

GSJ65*80.1*6.3
GSJ70*80.7*4.2
GSJ70*85.1*6.3

69.22*5.33
72.62*3.53
75.57*5.33

70
75
75

90.5
85.7
90.1

8.1
4.2
6.3

GSJ70*90.5*8.1
GSJ75*85.7*4.2
GSJ75*90.1*6.3

78.74*6.99
78.97*3.53
78.74*5.33

80
80
80

90.7
95.1
100.5

4.2
6.3
8.1

GSJ80*90.7*4.2
GSJ80*95.1*6.3
GSJ80*100.5*8.1

82.14*3.53
85.09*5.33
88.27*6.99

85
85
85

95.7
100.1
105.5

4.2
6.3
8.1

GSJ85*95.7*4.2
GSJ85*100.1*6.3
GSJ85*105.5*8.1

88.49*3.53
91.44*5.33
91.44*6.99

90
90
90

100.7
105.1
110.5

4.2
6.3
8.1

GSJ90*100.7*4.2
GSJ90*105.1*6.3
GSJ90*110.5*8.1

94.84*3.53
95.5*5.33
97.79*6.99

95
95
100

105.7
110.1
110.7

4.2
6.3
4.2

GSJ95*105.7*4.2
GSJ95*110.1*6.3
GSJ100*110.7*4.2

98.02*3.53
100.97*5.33
104.37*3.53

100
100
105

115.1
120.5
120.1

6.3
8.1
6.3

GSJ100*115.1*6.3
GSJ100*120.5*8.1
GSJ105*120.1*6.3

104.14*5.33
107.32*6.99
110.49*5.33
