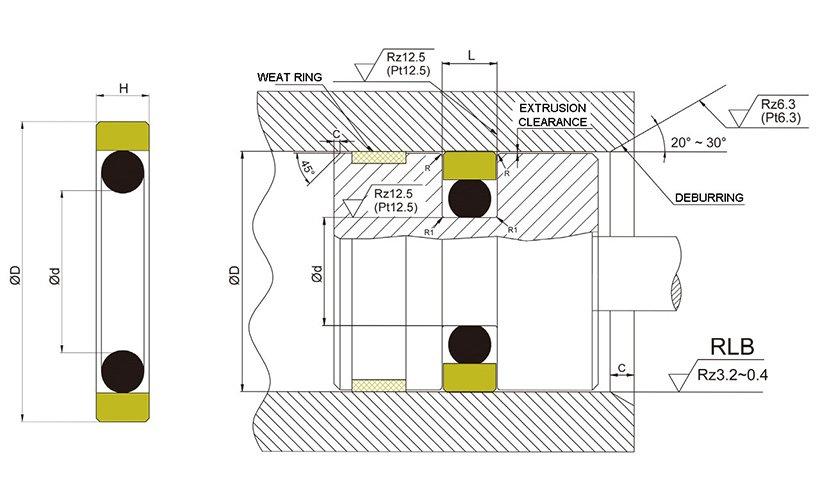

Installation Recommendation
Application and properties
Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-35MPa | -30℃+200℃ | 1.5 m/s | hydraulic oil, flame retardant liquid, water and others. |
Installation Dimensions
Nominal Size of Packing, and Housing dimensions | L +0.2 | Order No. |
D | d | H |
20
25
30 | 14
19
21.5 | 3
3
3.8 | 3.2
3.2
4 | DPO20*14*3.2
DPO25*19*3.2
DPO30*21.5*4 |
31.5
32
35 | 23
23.5
26.5 | 3.8
3.8
3.8 | 4
4
4 | DPO31.5*23*4
DPO32*23.5*4
DPO35*26.5*4 |
35.5
40
45 | 27
31.5
36.5 | 3.8
3.8
3.8 | 4
4
4 | DPO35.5*27*4
DPO40*31.5*4
DPO45*36.5*4 |
50
53
55 | 41.5
44.5
46.5 | 3.8
3.8
3.8 | 4
4
4 | DPO50*41.5*4
DPO53*44.5*4
DPO55*46.5*4 |
56
60
63 | 47.5
51.5
49 | 3.8
3.8
6.3 | 4
4
6.5 | DPO56*47.5*4
DPO60*51.5*4
DPO63*49*6.5 |
65
70
71 | 51
56
57 | 6.3
6.3
6.3 | 6.5
6.5
6.5 | DPO65*51*6.5
DPO70*56*6.5
DPO71*57*6.5 |
75
80
85 | 61
66
71 | 6.3
6.3
6.3 | 6.5
6.5
6.5 | DPO75*61*6.5
DPO80*66*6.5
DPO85*71*6.5 |
90
95
100 | 76
81
86 | 6.3
6.3
6.3 | 6.5
6.5
6.5 | DPO90*76*6.5
DPO95*81*6.5
DPO100*86*6.5 |
105
110
112 | 91
96
98 | 6.3
6.3
6.3 | 6.5
6.5
6.5 | DPO105*91*6.5
DPO110*96*6.5
DPO112*98*6.5 |
115
120
125 | 101
106
111 | 6.3
6.3
6.3 | 6.5
6.5
6.5 | DPO115*101*6.5
DPO120*106*6.5
DPO125*111*6.5 |
130
135
140 | 116
121
126 | 6.3
6.3
6.3 | 6.5
6.5
6.5 | DPO130*116*6.5
DPO135*121*6.5
DPO140*126*6.5 |
150
160
170 | 136
146
150 | 6.3
6.3
9.8 | 6.5
6.5
10.0 | DPO150*136*6.5
DPO160*146*6.5
DPO170*150*10 |
180
190
200 | 160
170
180 | 9.8
9.8
9.8 | 10.0
10.0
10.0 | DPO180*160*10
DPO190*170*10
DPO200*180*10 |
