Wholesale oring piston seals DMS Seal Manufacturer Brand

Wholesale oring piston seals DMS Seal Manufacturer Brand

Diameter Range
3-1600mm
Pressure Range
0-60MPa
Temperature Range
-30℃+200℃
Speed
3m/s
Medium
hydraulic oil, flame retardant liquid, water and others
Company Advantages
1. Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.
2. Dms Seals Technology Co.,limited works hard to make the quality and performance of piston seals products more in line with the needs of customers. To reduce costs with high-efficiency work is the DMS's purpose
3. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. hydraulic piston seals,pneumatic piston seals is mainly consisted of the hydraulic piston seals sizes. It realizes hydraulic piston seals.
4. We offer you superb range of o-ring seal. Our product and other types of furniture are hugely popular. We have developed solutions of the sealing of special working condition
5. The most predominant part of piston seals is of hydraulic cylinder piston seals. DMS Seals' production equipment and test equipment are on the leading level in the industry

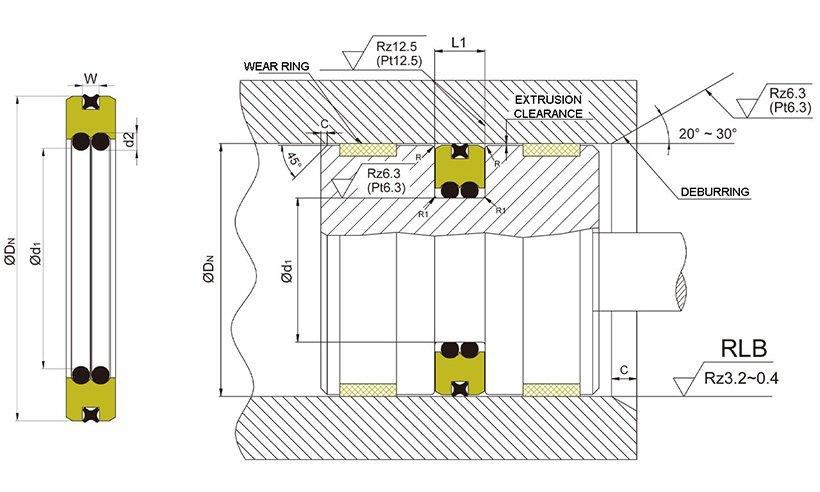

Installation Recommendation

undefined

Installation Sizes

Groove    Diameter      DN H9

Groove    Diameter

Groove Width

Radius

Radial    Clearance                S max.

O-Ring Cross    Section

X-Ring Seal    Cross Section

Standard    Application

Heavy Duty    Application

d1    h9

L1+0.2

R1

10MPa

20MPa

30MPa

d2

W

40 - 79.9

25 - 140

DN -    10.0

6.3

0.6

0.3

0.2

0.15

2.62

1.78

80 - 132.9

50 - 250

DN -    13.0

8.3

1.0

0.4

0.3

0.15

3.53

2.62

133 - 252.9

100 - 480

DN -    18.0

12.3

1.3

0.4

0.3

0.20

5.33

3.53

463 - 700

425 - 700

DN -    31.0

16.3

1.8

0.5

0.4

0.30

7.00

5.33

Application and properties

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

X-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-30℃+200℃

3 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring  Dimension

d h9

D1  H9

L1+0.2

40
42
45

30
32
35

6.3
6.3
6.3

DAQ2-40*30*6.3
DAQ2-42*32*6.3
DAQ2-45*35*6.3

29.82*2.62
31.42*2.62
34.59*2.62

48
50
52

38
40
42

6.3
6.3
6.3

DAQ2-48*38*6.3
DAQ2-50*40*6.3
DAQ2-52*42*6.3

37.77*2.62
39.34*2.62
40.94*2.62

55
60
63

45
50
53

6.3
6.3
6.3

DAQ2-55*45*6.3
DAQ2-60*50*6.3
DAQ2-63*53*6.3

44.12*2.62
48.90*2.62
52.07*2.62

65
70
75

55
60
65

6.3
6.3
6.3

DAQ2-65*55*6.3
DAQ2-70*60*6.3
DAQ2-75*65*6.3

53.64*2.62
58.42*2.62
63.17*2.62

80
85
90

67
72
77

8.3
8.3
8.3

DAQ2-80*67*8.3
DAQ2-85*72*8.3
DAQ2-90*77*8.3

66.27*3.53
69.44*3.53
75.79*3.53

95
100
105

82
87
92

8.3
8.3
8.3

DAQ2-95*82*8.3
DAQ2-100*87*8.3
DAQ2-105*92*8.3

78.97*3.53
85.32*3.53
91.67*3.53

110
115
120

97
102
107

8.3
8.3
8.3

DAQ2-110*97*8.3
DAQ2-115*102*8.3
DAQ2-120*107*8.3

94.84*3.53
101.19*3.53
104.37*3.53

125
130
135

112
117
117

8.3
8.3
12.3

DAQ2-125*112*8.3
DAQ2-130*117*8.3
DAQ2-135*117*12.3

110.72*3.53
113.89*3.53
113.67*5.33

140
150
160

122
132
142

12.3
12.3
12.3

DAQ2-140*122*12.3
DAQ2-150*132*12.3
DAQ2-160*142*12.3

120.02*5.33
129.54*5.33
139.07*5.33

undefined
Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited gathers industry elites to produce the best piston seals. - Our professional technician strictly operate machines to ensure its normal operation and produce high quality hydraulic piston seals.
2. To meet customer's requirements, DMS Seal Manufacturer always keeps the innovative technology to produce o-ring seal.
3. Dms Seals Technology Co.,limited boasts its advanced production technology. - We can customize solutions to making piston seals for your own pneumatic piston seals use.
