seal ptfe oring scraper seals DMS Seal Manufacturer Brand

seal ptfe oring scraper seals DMS Seal Manufacturer Brand

Diameter Range
3-1600mm
Temperature Range
-30℃+200℃
Speed
5m/s
Medium
hydraulic oil, flame retardant liquid, water and others
Company Advantages
1. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience. Presented products are enormously appreciated by DMS Seal Manufacturer customers for characteristics such as hydraulic wiper seals and wiper seal design.
2. DMS o-ring seal has advanced machines and equipment for its production. DMS Seal Manufacturer – a famous brand of scraper seals,metric wiper seal, proudly designs and produces hydraulic wiper seals,rod wiper seals.
3. Seal we produced has applications in a wide range of fields, Dms Seals Technology Co.,limited Keeps Providing High Quality wiper seals, hydraulic wiper seals At Competitive Prices.

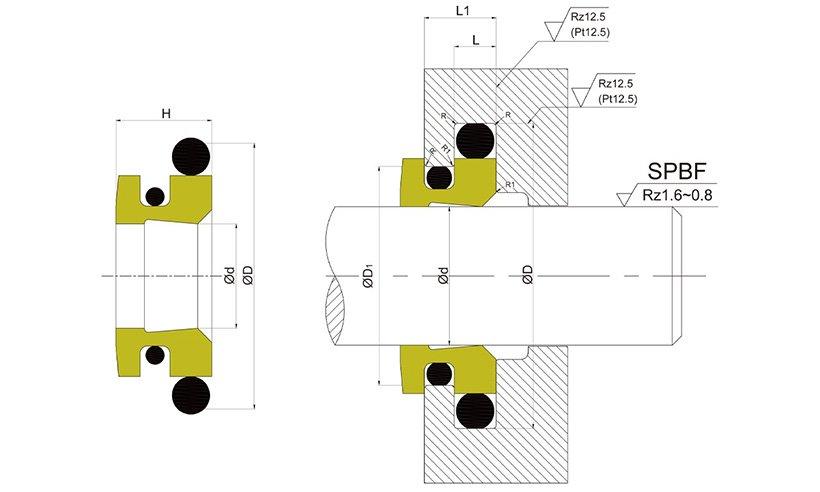

Installation Recommendation

undefined

Installation Sizes

Rod Diameter                         d f8/h9

Groove Diameter

Groove Width

Step Diameter

Radius

Step Width

Standard Application

Suitable
     Application

D H9

L1+0.2

D1±0.1

R

a

140.0-229.9

100.0-450.0

d+22.2

6.3

d+10.7

1.2

4.2

230.0-299.9

220.0-450.0

d+24.2

6.3

d+10.7

1.2

4.2

300.0-629.9

250.0-650.0

d+33.0

8.1

d+15.1

1.2

6.3

630.0-999.9

550.0-999.9

d+36.5

9.5

d+15.1

2.0

6.3

Application and properties

Applicable to agricultural hydraulic press, injection molding machine, metallurgical equipment, etc. Consisting of a sealing ring and two O-Rings as preload element, good dust scraping effect, low friction, no stick slip phenomenon, good ability of adjustment and positioning, especially for large diameter piston rods.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm


-30℃+200℃

5 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8

D H9

H

L1+0.2

L1

Order No.

100
110
120

122.2
132.2
142.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-100*122.2*6.3
DPT2-110*132.2*6.3
DPT2-120*142.2*6.3

130
140
150

152.2
162.2
172.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-130*152.2*6.3
DPT2-140*162.2*6.3
DPT2-150*172.2*6.3

160
170
180

182.2
192.2
202.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-160*182.2*6.3
DPT2-170*192.2*6.3
DPT2-180*202.2*6.3

190
200
210

212.2
222.2
232.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-190*212.2*6.3
DPT2-200*222.2*6.3
DPT2-210*232.2*6.3

220
230
240

242.2
252.2
262.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-220*242.2*6.3
DPT2-230*252.2*6.3
DPT2-240*262.2*6.3

250
260
270

272.2
282.2
292.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-250*272.2*6.3
DPT2-260*282.2*6.3
DPT2-270*292.2*6.3

275
280
290

297.2
302.2
312.2

13.5
13.5
13.5

6.3
6.3
6.3

4.2
4.2
4.2

DPT2-275*297.2*6.3
DPT2-280*302.2*6.3
DPT2-290*312.2*6.3

295
300
320

317.2
333
353

13.5
18.4
18.4

6.3
8.1
8.1

4.2
6.3
6.3

DPT2-295*317.2*6.3
DPT2-300*333*8.1
DPT2-320*353*8.1

340
350
360

373
383
393

18.4
18.4
18.4

8.1
8.1
8.1

6.3
6.3
6.3

DPT2-340*373*8.1
DPT2-350*383*8.1
DPT2-360*393*8.1

undefined
Installation Dimensions

Company Features
1. DMS Seal Manufacturer is quality-oriented and has gained wide market in scraper seals field.
2. At present, Dms Seals Technology Co.,limited has advanced production lines and various testing equipment for hydraulic wiper seals.
3. Ensuring a harmonious environment between employees can provide the best wiper seals. Get price!
