nbrfkm ptfe hydraulic hydraulic rod seals DMS Seal Manufacturer Brand

nbrfkm ptfe hydraulic hydraulic rod seals DMS Seal Manufacturer Brand
  • nbrfkm ptfe hydraulic hydraulic rod seals DMS Seal Manufacturer Brand
  • nbrfkm ptfe hydraulic hydraulic rod seals DMS Seal Manufacturer Brand
nbrfkm ptfe hydraulic hydraulic rod seals DMS Seal Manufacturer Brand
Diameter Range
3-1600mm
Pressure Range
0-60MPa
Temperature Range
-30℃+100℃
Speed
5m/s
Medium
hydraulic oil, flame retardant liquid, water, gas
Company Advantages
1. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management. hydraulic rod seals piston rod seal offered by DMS Seal Manufacturer are used for hydraulic rod seals online.
2. The fame of DMS Seal Manufacturer is widely increasing for its high quality rod seals. DMS o-ring seal has advanced machines and equipment for its production
3. DMS Seals takes the lead in grasping the development trend of the industry. Our hydraulic rod seals,rod seal catalogue are high in demand due to their premium quality, pneumatic rod seals and affordable prices.
4. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level, We Are Offer You High Quality O Ring Manufacturers, push rod seal, hydraulic rod seals With Advanced Technology And First-Class Service.

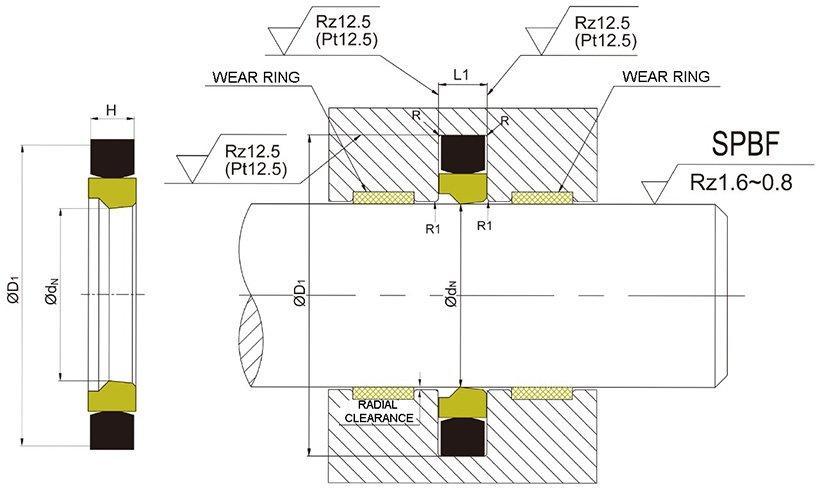

Installation Recommendation

undefined

Installation Sizes

Rod Diameter

Outer    Diameter

Groove Width

Install    Chamfer

Radius

Radial    Clearance                S max.

 d f8

D H8

L+0.2

L1

R1

10MPa

20MPa

40MPa

50-69.9

d+15.0

7.5

5.0

0.4

0.5

0.4

0.3

70-149.9

d+20.0

10.1

6.0

0.4

0.7

0.5

0.4

200-244.9

d+25.0

12.5

8.5

0.4

0.8

0.6

0.5

245-519.9

d+30.0

15.0

10.0

0.8

0.9

0.7

0.6

520-769.9

d+35.0

17.5

13.0

1.2

1.0

0.8

0.7

770-1500

d+40.0

20.0

15.0

1.2

1.0

0.8

0.7

Application and properties

Applied for larger diameter piston rods and heavy-duty hydraulic rod sealing system in hard working conditions. High pressure resistance, excellent resistance to gap extrusion, wear-resisting.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-30℃+100℃

5 m/s

hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

Rod Dia.

Outer Dia.

Groove Width

Order No.

d f8

D H8

L+0.2

50
60
70

65
75
85

7.5
7.5
7.5

GSJ-W50*65*7.5
GSJ-W60*75*7.5
GSJ-W70*85*7.5

75
80
100

95
100
120

10
10
10

GSJ-W75*95*10
GSJ-W80*100*10
GSJ-W100*120*10

110
115
120

130
135
140

10
10
10

GSJ-W110*130*10
GSJ-W115*135*10
GSJ-W120*140*10

130
140
145

150
160
165

10
10
10

GSJ-W130*150*10
GSJ-W140*160*10
GSJ-W145*165*10

150
160
170

170
180
190

10
10
10

GSJ-W150*170*10
GSJ-W160*180*10
GSJ-W170*190*10

175
180
200

195
200
220

10
10
10

GSJ-W175*195*10
GSJ-W180*200*10
GSJ-W200*220*10

230
240
250

255
265
275

12.5
12.5
12.5

GSJ-W230*255*12.5
GSJ-W240*265*12.5
GSJ-W250*275*12.5

260
265
270

285
290
295

12.5
12.5
12.5

GSJ-W260*285*12.5
GSJ-W265*290*12.5
GSJ-W270*295*12.5

280
290
300

305
315
325

12.5
12.5
12.5

GSJ-W280*305*12.5
GSJ-W290*315*12.5
GSJ-W300*325*12.5

undefined
Installation Dimensions
