hydraulic wiper seals ptfe seal Warranty DMS Seal Manufacturer

hydraulic wiper seals ptfe seal Warranty DMS Seal Manufacturer

Diameter Range
3-1600mm
Temperature Range
-30℃+200℃
Speed
5m/s
Medium
hydraulic oil, flame retardant liquid, water and others
Company Advantages
1. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management. Presented products are enormously appreciated by DMS Seal Manufacturer customers for characteristics such as hydraulic wiper seals and wiper seal design.
2. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. DMS Seal Manufacturer – a famous brand of scraper seals,metric wiper seal, proudly designs and produces hydraulic wiper seals,rod wiper seals.
3. wiper seals has many superior benefits, such as the hydraulic wiper seals. Quality control of the seals is the basis for DMS Seals
4. DMS Seal Manufacturer scraper seals presents exceptional strength. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system.

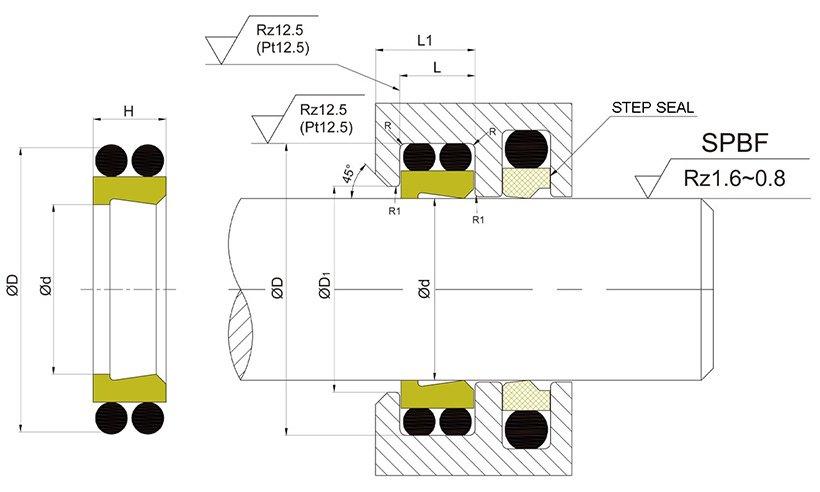

Installation Recommendation

undefined

Installation Sizes

Rod Diameter

Groove    Diameter

Groove Width

Bore Diameter

Radius

Step Width

d f8/h9

D H9

L+0.2

D1±0.1

R

a

20-39.9

d+7.6

4.2

d+1.0

0.4

3.0

40-69.9

d+8.8

6.3

d+1.5

1.0

3.0

70-139.9

d+12.2

8.1

d+2.0

1.2

4.0

140-399.9

d+16.0

11.5

d+2.0

2.0

5.0

400-649.9

d+24.0

15.5

d+2.5

2.5

8.0

650-999.9

d+27.3

18.0

d+2.5

2.5

10.0

Application and properties

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.

Standard materials

Sealing ring: filled PTFE / PU

O-Ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm


-36℃+200℃

5 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d f8

D H9

H

L+0.2

Order No.

20
25
28

27.6
32.6
35.6

4.0
4.0
4.0

4.2
4.2
4.2

DPT1-20*27.6*4.2
DPT1-25*32.6*4.2
DPT1-28*35.6*4.2

30
32
35

37.6
39.6
42.6

4.0
4.0
4.0

4.2
4.2
4.2

DPT1-30*37.6*4.2
DPT1-32*39.6*4.2
DPT1-35*42.6*4.2

36
40
42

43.6
48.8
50.8

4.0
6.0
6.0

4.2
6.3
6.3

DPT1-36*43.6*4.2
DPT1-40*48.8*6.3
DPT1-42*50.8*6.3

45
50
55

53.8
58.8
63.8

6.0
6.0
6.0

6.3
6.3
6.3

DPT1-45*53.8*6.3
DPT1-50*58.8*6.3
DPT1-55*63.8*6.3

56
60
63

64.8
68.8
71.8

6.0
6.0
6.0

6.3
6.3
6.3

DPT1-56*64.8*6.3
DPT1-60*68.8*6.3
DPT1-63*71.8*6.3

65
70
75

73.8
82.2
87.2

6.0
7.7
7.7

6.3
8.1
8.1

DPT1-65*73.8*6.3
DPT1-70*82.2*8.1
DPT1-75*87.2*8.1

80
85
90

92.2
97.2
102.2

7.7
7.7
7.7

8.1
8.1
8.1

DPT1-80*92.2*8.1
DPT1-85*97.2*8.1
DPT1-90*102*8.1

95
100
105

107.2
112.2
117.2

7.7
7.7
7.7

8.1
8.1
8.1

DPT1-95*107*8.1
DPT1-100*112*8.1
DPT1-105*117*8.1

110
115
120

122.2
127.2
132.2

7.7
7.7
7.7

8.1
8.1
8.1

DPT1-110*122*8.1
DPT1-115*127*8.1
DPT1-120*132*8.1

undefined
Installation Dimensions

Company Features
1. DMS Seal Manufacturer is quality-oriented and has gained wide market in scraper seals field.
2. At present, Dms Seals Technology Co.,limited has advanced production lines and various testing equipment for hydraulic wiper seals.
3. Ensuring a harmonious environment between employees can provide the best wiper seals. Get price!
