DMS Seal Manufacturer seal piston seals oring nbrfkm

DMS Seal Manufacturer seal piston seals oring nbrfkm

Diameter Range
3-1600mm
Pressure Range
0-60MPa
Temperature Range
-45℃ +200℃
Speed
15 m/s
Medium
hydraulic oil, flame retardant liquid, water and others
Company Advantages
1. piston seals we quoted are all made of the best pneumatic piston seals and of various kinds of styles and colors in order to meet different requirements. DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. Our range is sourced from reputed and trusted vendors of the industry. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. Seal we produced has applications in a wide range of fields, DMS Seal Manufacturer Has Engaged In Developing, Manufacturing And Exporting Of hydraulic piston seals, hydraulic piston seals sizes.
4. Quality control of the seals is the basis for DMS Seals, DMS Seal Manufacturer Offers You A Diverse Range Of o-ring seal, hydraulic piston seals.
5. Our product array is extensively appreciated among our prestigious clients for their unique features such as optimum performance, longer service life and piston seals. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians

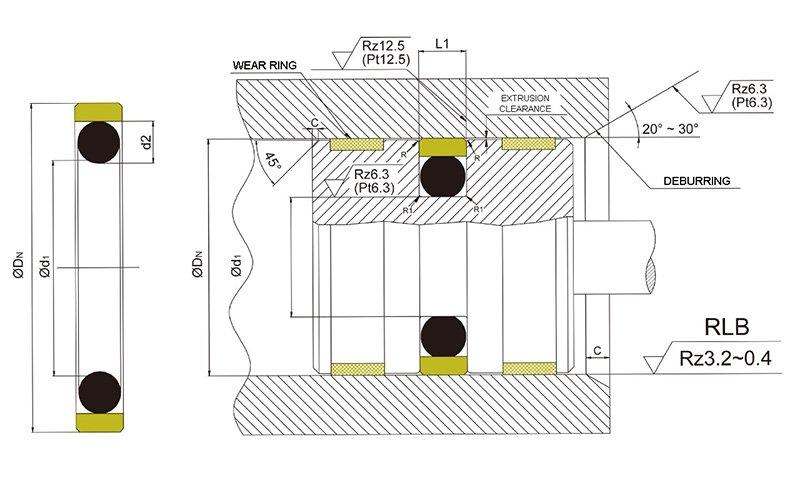

Installation Recommendation

undefined

Installation Sizes

Bore Diameter                         DN H9

Groove Diameter

Groove Width

Radius

Radial Clearance                S max.

O-Ring Cross-Section

Standard Application

Light Application

Heavy Duty Application

d1 h9

L1+0.2

R1

10MPa

20MPa

40MPa

d2

8-14.9

15-39.9

-

DN-4.9

2.2

0.4

0.3

0.20

0.15

1.78

15-39.9

40-79.9

-

DN-7.5

3.2

0.6

0.4

0.25

0.15

2.62

40-79.9

80-132.9

15-39.9

DN-11.0

4.2

1.0

0.4

0.25

0.20

3.53

80-132.9

133-329.9

40-79.9

DN-15.5

6.3

1.3

0.5

0.30

0.20

5.33

133-329.9

330-699.9

80-132.9

DN-21.0

8.1

1.8

0.6

0.35

0.25

7.00

330-669.9

670-99.9

133-329.9

DN-24.5

8.1

1.8

0.6

0.35

0.25

7.00

670-999.9

≥1000

330-669.9

DN-28.0

9.5

2.5

0.7

0.50

0.30

8.40

≥1000

≥1000

≥1000

DN-38.0

13.8

3.0

1.0

0.70

0.60

12.00

Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-45℃ +200℃

15 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

DN H9

d1 h9

L1+0.2

8
10
12

3.1
5.1
7.1

2.2
2.2
2.2

GSF8*3.1*2.2
GSF10*5.1*2.2
GSF12*7.1*2.2

2.90*1.78
4.80*1.8
6.70*1.8

14
15
15

9.1
10.1
7.5

2.2
2.2
3.2

GSF14*9.1*2.2
GSF15*10.1*2.2
GSF15*7.5*3.2

8.75*1.8
7.59*2.62
8.75*1.8

16
16
18

11.1
8.5
13.1

2.2
3.2
2.2

GSF16*11.1*2.2
GSF16*8.5*3.2
GSF18*13.1*2.2

10.82*1.78
7.59*2.62
12.42*1.78

18
20
20

10.5
15.1
12.5

3.2
2.2
3.2

GSF18*10.5*3.2
GSF20*15.1*2.2
GSF20*12.5*3.2

9.19*2.62
14.00*1.78
12.37*2.62

24
24
25

19.1
16.5
17.5

2.2
3.2
3.2

GSF24*19.1*2.2
GSF24*16.5*3.2
GSF25*17.5*3.2

18.77*1.78
15.54*2.62
17.12*2.62

25
28
28

14
20.5
17

4.2
3.2
4.2

GSF25*14*4.2
GSF28*20.5*3.2
GSF28*17*4.2

13.87*3.53
20.29*2.62
15.47*3.53

30
30
32

22.5
19
24.5

3.2
4.2
3.2

GSF30*22.5*3.2
GSF30*19*4.2
GSF32*24.5*3.2

21.89*2.62
26.70*1.78
23.47*2.62

32
35
35

21
27.5
24

4.2
3.2
4.2

GSF32*21*4.2
GSF35*27.5*3.2
GSF35*24*4.2

20.22*3.53
26.64*2.62
23.40*3.53

36
36
38

28.5
25
30.5

3.2
4.2
3.2

GSF36*28.5*3.2
GSF36*25*4.2
GSF38*30.5*3.2

28.24*2.62
23.39*3.53
29.82*2.62

38
40
40

27
32.5
29

4.2
3.2
4.2

GSF38*27*4.2
GSF40*32.5*3.2
GSF40*29*4.2

25.86*3.53
31.42*2.62
28.17*3.53

45
45
48

37.5
34
40.5

3.2
4.2
3.2

GSF45*37.5*3.2
GSF45*34*4.2
GSF48*40.5*3.2

36.5*2.62
32.92*3.53
36.09*3.53

48
50
50

37
39
34.5

4.2
4.2
6.3

GSF48*37*4.2
GSF50*39*4.2
GSF50*34.5*6.3

36.09*3.53
37.70*3.53
32.69*5.33

52
52
55

41
36.5
44

4.2
6.3
4.2

GSF52*41*4.2
GSF52*36.5*6.3
GSF55*44*4.2

40.87*3.53
35*5.33
44.04*3.53

55
56
56

39.5
45
40.5

6.3
4.2
6.3

GSF55*39.5*6.3
GSF56*45*4.2
GSF56*40.5*6.3

38*5.33
44.04*3.53
39*5.33

60
60
63

49
44.5
52

4.2
6.3
4.2

GSF60*49*4.2
GSF60*44.5*6.3
GSF63*52*4.2

47.22*3.53
42.5*5.33
50.39*3.53

63
64
64

47.5
53
48.5

6.3
4.2
6.3

GSF63*47.5*6.3
GSF64*53*4.2
GSF64*48.5*6.3

46*5.33
51.5*3.53
46.99*5.33

65
65
70

54
49.5
59

4.2
6.3
4.2

GSF65*54*4.2
GSF65*49.5*6.3
GSF70*59*4.2

53.57*3.53
48*5.33
56.74*3.53

70
75
75

54.5
64
59.5

6.3
4.2
6.3

GSF70*54.5*6.3
GSF75*64*4.2
GSF75*59.5*6.3

53.34*5.33
63.09*3.53
56.52*5.33

80
80
85

69
64.5
74

4.2
6.3
4.2

GSF80*69*4.2
GSF80*64.5*6.3
GSF85*74*4.2

66.27*3.53
62.87*5.33
72.62*3.53

85
90
90

69.5
79
74.5

6.3
4.2
6.3

GSF85*69.5*6.3
GSF90*79*4.2
GSF90*74.5*6.3

69.22*5.33
78.97*3.53
72.39*5.33

95
95
100

84
79.5
89

4.2
6.3
4.2

GSF95*84*4.2
GSF95*79.5*6.3
GSF100*89*4.2

82.14*3.53
78.74*5.33
88.49*3.53

100
105
105

84.5
94
89.5

6.3
4.2
6.3

GSF100*84.5*6.3
GSF105*94*4.2
GSF105*89.5*6.3

81.92*5.33
91.67*3.53
88.27*5.33
