DMS Seal Manufacturer Brand ptfe hydraulic pneumatic piston seals

DMS Seal Manufacturer Brand ptfe hydraulic pneumatic piston seals

Diameter Range
3-1600mm
Pressure Range
0-45MPa
Temperature Range
-30℃+100℃
Speed
1m/s
Medium
hydraulic oil, flame retardant liquid, water and others
Company Advantages
1. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. As one of the unique feature, pneumatic piston seals successfully makes hydraulic piston seals sizes more popular among customers. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. Dms Seals Technology Co.,limited, well-known for its superior quality, will provide first-class service. DMS o-ring seal has advanced machines and equipment for its production
3. And we want to ensure that the piston seals we develop is right for you and the end user – Our passionate, problem-solving, engineering-design teams are formed on a foundation of creativity, collaborative working and experience. DMS Seals provides professional design and production of high-grade o-ring seals

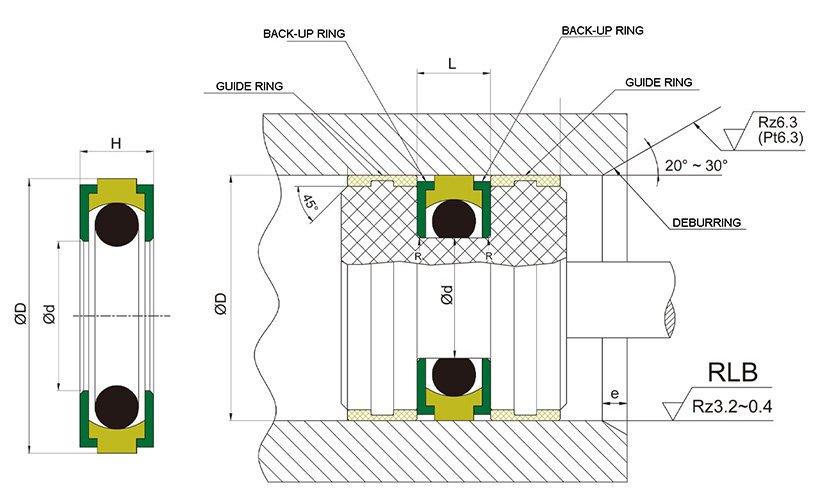

Installation Recommendation

undefined

Installation Sizes

D H8

d h9

L+0.2

H

˂96

D-16.3

8

7.5

96-190

D-20

10

9.5

191-380

D-28

13

12.5

381-1000

D-36

20

19.5

Application and properties

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-45MPa

-30℃+100℃

1 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8

d h9

H

L

e

Order No.

40
45
50

23.2
28.2
33.2

7.5
7.5
7.5

8
8
8

7
7
7

DGDA40*23.2*7.5
DGDA45*28.2*7.5
DGDA50*33.2*7.5

56
63
65

39.2
46.2
48.2

7.5
7.5
7.5

8
8
8

7
7
7

DGDA56*39.2*7.5
DGDA63*46.2*7.5
DGDA65*48.2*7.5

70
75
80

53.2
58.2
63.2

7.5
7.5
7.5

8
8
8

7
7
7

DGDA70*53.2*7.5
DGDA75*58.2*7.5
DGDA80*63.2*7.5

85
90
95

68.2
73.2
78.2

7.5
7.5
7.5

8
8
8

7
7
7

DGDA85*68.2*7.5
DGDA90*73.2*7.5
DGDA95*78.2*7.5

100
105
110

80
85
90

9.5
9.5
9.5

10
10
10

10
10
10

DGDA100*80*9.5
DGDA105*85*9.5
DGDA110*90*9.5

115
120
125

95
100
105

9.5
9.5
9.5

10
10
10

10
10
10

DGDA115*95*9.5
DGDA120*100*9.5
DGDA125*105*9.5

130
135
140

110
115
120

9.5
9.5
9.5

10
10
10

10
10
10

DGDA130*110*9.5
DGDA135*115*9.5
DGDA140*120*9.5

145
150
155

125
130
135

9.5
9.5
9.5

10
10
10

10
10
10

DGDA145*125*9.5
DGDA150*130*9.5
DGDA155*135*9.5

160
170
180

140
150
160

9.5
9.5
9.5

10
10
10

10
10
10

DGDA160*140*9.5
DGDA170*150*9.5
DGDA180*160*9.5

190
200
210

170
172
182

9.5
12.5
12.5

10
13
13

10
12
12

DGDA190*170*9.5
DGDA200*172*12.5
DGDA210*182*12.5

220
225
235

192
197
207

12.5
12.5
12.5

13
13
13

12
12
12

DGDA220*192*12.5
DGDA225*197*12.5
DGDA235*207*12.5

undefined
Installation Dimensions

Company Features
1. There is strict testing for quality of piston seals to make satisfying products for customers.
2. Our hydraulic piston seals have been well sold to all over the world known as its pneumatic piston seals. Welcome to visit our factory!
