DMS Seal Manufacturer Brand nbrfkm rotary ptfe rotary shaft seals

DMS Seal Manufacturer Brand nbrfkm rotary ptfe rotary shaft seals

Diameter Range
3-1600mm
Pressure Range
0-36MPa
Temperature Range
-36℃+100℃
Speed
0.5m/s
Medium
hydraulic oil, flame retardant liquid, water and others
Company Advantages
1. Quality control of the seals is the basis for DMS Seals. Presented products are enormously appreciated by DMS Seal Manufacturer customers for characteristics such as rotary shaft seals and rotary seals manufacturer.
2. The high pressure seals have strong wear resistance to hard conditions. DMS Seal Manufacturer – a famous brand of rotary seals,rotary seals catalogue, proudly designs and produces rotary shaft seals,rotary shaft seals.
3. DMS Seal Manufacturer's focus is on performance of products including rotary seals manufacturer. We can support OEM and ODM
4. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. All parts of o-ring seal,rotary seals catalogue is in their good status and make it for high performance.
5. We have developed solutions of the sealing of special working condition, DMS Seal Manufacturer Is Sure To Offer You Best Quality rotary seals And Excellent After-Sale Service.

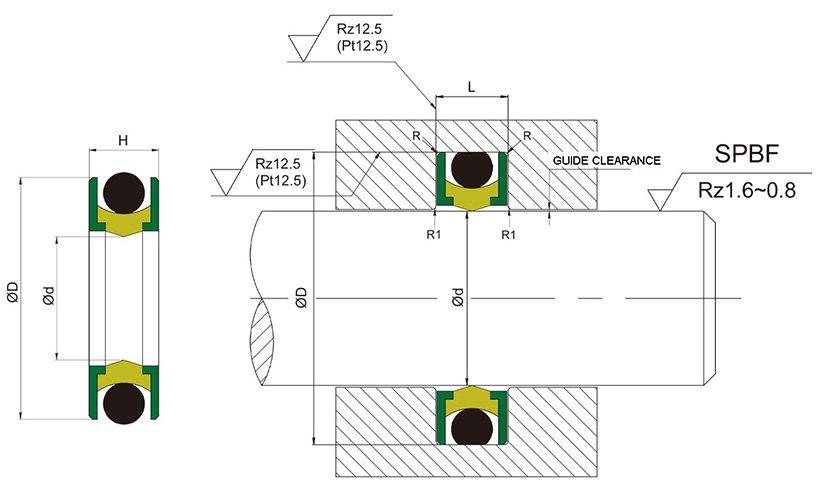

Installation Recommendation

undefined

Installation Sizes

Rod Diameter

Groove Diameter

Seal Width

Groove Width

Guide    Clearance S max

d e8

D    H9

H

L

0-10MPa

15-36MPa

50-79

d+10.0

4.5

5.0

0.40-0.30

0.30-0.25

80-109

d+13.8

7.0

7.5

0.45-0.35

0.35-0.30

110-299

d+20.0

9.5

10.0

0.55-0.45

0.45-0.35

300-600

d+24.0

12.5

13.0

0.60-0.55

0.55-0.45

Application and properties

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-36MPa

-36℃+100℃

0.5 m/s

hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

d e8

D H9

H

L

e

Order No.

50
56
63

60
66
73

4.5
4.5
4.5

5
5
5

7
7
7

OI50*60*4.5
OI56*66*4.5
OI63*73*4.5

65
70
75

75
80
85

4.5
4.5
4.5

5
5
5

7
7
7

OI65*75*4.5
OI70*80*4.5
OI75*85*4.5

80
85
90

93.8
98.8
103.8

7.0
7.0
7.0

7.5
7.5
7.5

7
7
7

OI80*93.8*7
OI85*98.8*7
OI90*103.8*7

95
100
110

108.8
113.8
130

7.0
7.0
9.5

7.5
7.5
10

7
7
10

OI95*108.8*7
OI100*113.8*7
OI110*130*9.5

115
120
125

135
140
140

9.5
9.5
9.5

10
10
10

10
10
10

OI115*135*9.5
OI120*140*9.5
OI125*140*9.5

130
140
150

150
160
170

9.5
9.5
9.5

10
10
10

10
10
10

OI130*150*9.5
OI140*160*9.5
OI150*170*9.5

160
170
180

180
190
200

9.5
9.5
9.5

10
10
10

10
10
10

OI160*180*9.5
OI170*190*9.5
OI180*200*9.5

190
200
220

210
220
240

9.5
9.5
9.5

10
10
10

10
10
10

OI190*210*9.5
OI200*220*9.5
OI220*240*9.5

225
230
250

245
250
270

9.5
9.5
9.5

10
10
10

10
10
10

OI225*245*9.5
OI230*250*9.5
OI250*270*9.5

undefined
Installation Dimensions
